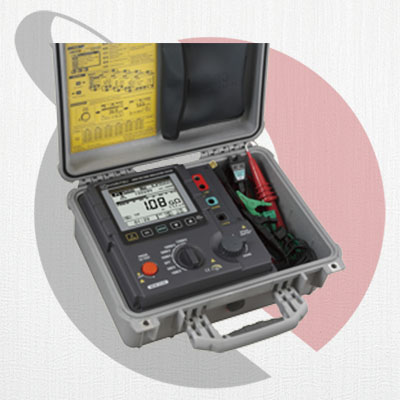

Kyoritsu Insulation Testers KEW 3128

• Mikroprosesor yang dikontrol tester resistansi isolasi tegangan tinggi dengan fungsi Diagnostik.
• Cocok untuk menganalisis karakteristik isolasi kabel, transformator, motor, generator, sakelar tekanan tinggi, isolator, instalasi kabel, dll.
• 6 rentang: 500V, 1000V, 2500V, 5000V, 10000V, 12000V
Penyesuaian pengaturan tegangan yang baik pada setiap rentang juga dimungkinkan
• Representasi grafis dari tahanan isolasi dan arus bocor terhadap waktu pada tampilan besar dengan grafik batang dan lampu latar.
• Dapat dioperasikan dari baterai yang dapat diisi ulang built-in atau dari saluran AC.
• Pelepasan otomatis setelah pengujian dengan pemantauan voltase pelepasan.
• Memori internal dapat menyimpan sekitar 43.000 data (maks).
• Desain yang kuat untuk penggunaan lapangan dengan peringkat IP64 (dengan tutup tertutup).

SKU: KYORITSU-3128 Kategori: Insulation Tester, Kyoritsu

Deskripsi

**Insulation resistance (*): Accuracy is not guaranteed with setting of 250V or less**

Rated voltage	500V	1000V	2500V	5000V	10000V	12000V
Max measurement value	500GΩ	1TΩ	2.5TΩ	5TΩ	35TΩ
Accuracy	400k～50GΩ ±5%rdg±3dgt (*)	800k～100GΩ 5%rdg±3dgt	2M～250GΩ ±5%rdg±3dgt	4M～500GΩ ±5%rdg±3dgt	8M～1TΩ ±5%rdg±3dgt
	50G～500GΩ ±20%rdg (*)	100G～1TΩ ±20%rdg	250G～2.5TΩ ±20%rdg	500G～5TΩ ±20%rdg	1T～10TΩ ±20%rdg
	50G～500GΩ ±20%rdg (*)	100G～1TΩ ±20%rdg	250G～2.5TΩ ±20%rdg	500G～5TΩ ±20%rdg	10T – 35TΩ Values are displayed, but accuracy isn’t guaranteed
Short circuit current	Max 5.0mA
Load resistor to output rated voltage	0.5MΩ or more	1MΩ or more	2.5MΩ or more	5MΩ or more	20MΩ or more	24MΩ or more

Output voltage

Rated voltage	500V	1000V	2500V	5000V	10000V	12000V
Monitor accuracy	±10%±20V	±10%±20V	±10%±20V	±10%±20V	±10%±20V	±10%±20V
Output accuracy	0 – +20%	0 – +10%	0 – +10%	0 – +10%	-5 – +5%	-5 – +5%
Selectable range	50 – 600V (in steps of 5V)	610 – 1200V (in steps of 10V)	1225 – 3000V (in steps of 25V)	3050 – 6000V (in steps of 50V)	6100 – 10000V (in steps of 100V)	10100 – 12000V (in steps of 100V)

Voltage measurement

Measuring range	DCV：±30 ～ ±600V、ACV：30 ～ 600V （50/60Hz）
Accuracy	±2%rdg±3dgt

Current measurement

Measuring range	5.00nA – 2.40mA (Depending on the insulation resistance)

Capacitance measurement

Measuring range	5.0nF ～ 50.0μF (500V/1000V/2500V/5000V)	5.0nF – 1.0µF (display range: 5.0nF – 50.0µF) (10000V/12000V)
Accuracy	±5%rdg±5dgt

General

Applicable standards	IEC 61010-1 CAT IV 600V Pollution degree 2, IEC 61010-031, IEC 61326, IEC 60529 (IP64): with the lid closed.
Operating temperature & humidity range	-10ºC – Relative humidity 85% or less 50ºC /(when operating with an external power supply, no condensation) 0ºC – 40ºC /Relative humidity 85% or less (when operating with battery, no condensation)
Storage temperature & humidity range	-20ºC – 60ºC / Relative humidity 75% or less (no condensation)
Power source	Rechargeable Lead storage battery (12V)* Charging time: approx. 8 hours / AC Power supply (100V – 240V, 50/60Hz) * Continuous measuring time: approx. 4 hours (a load of 100MΩ at the Insulation resistance 12000V Range.) approx. 2 hours (Max current consumption in range while rated currents are maintained.)
Dimensions	330 (L) × 410 (W) × 180 (D) mm *Instrument and Hard case
Weight	9kg approx. (including battery) *Instrument and Hard case
Included Accessories	7170 (Main cord), 7224A (Earth cord), 7225A (Guard cord), 7226A (Line probe), 7227A (Line probe with alligator clip), 8029 (Extension prod), 8212-USB-W (USB adaptor with KEW Windows (Software)), Instruction manual
Optional Accessories	7254 (Longer Line probe with alligator clip)
