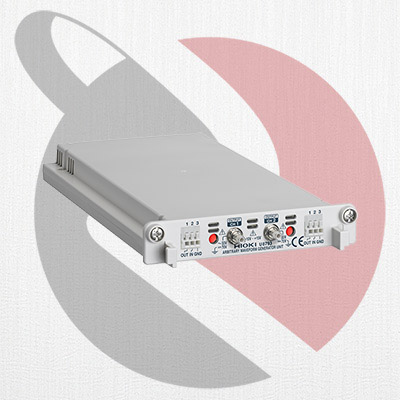

Unit Generator Gelombang Sewenang-wenang U8793 adalah modul plug-and-play untuk Hioki Memory HiCorder untuk membuat generator fungsi, generator gelombang acak, dan pengukuran bentuk gelombang dalam satu perangkat. Mudah mengamati bentuk gelombang sambil memvariasikan kondisi pengujian, seperti mengubah amplitudo dan frekuensi sinyal serta memprogram berbagai bentuk gelombang ke output secara berurutan.
| Output terminal | Number of channels: 2, SMB terminal (Output impedance: 1 Ω or less) Max. rated voltage to ground: 33 V rms AC or 70 V DC |
|---|---|
| Output voltage range | -10 V to 15 V (Amplitude setting range: 0 V to 20 V p-p, Setting resolution: 1 mV) |
| Max. output current | 10 mA (Allowable load resistance: 1.5 kΩ or more) |
| Function generator | DC, Sine wave, Square wave, Pulse wave, Triangular wave, Ramp wave, Output frequency: 0 Hz to 100 kHz |
| Arbitrary waveform generator mode | Waveforms measured by MR8847A, etc., generated by Hioki Model 7075, PW3198, or SF8000, CSV waveforms D/A refresh rate: 2 MHz (using 16-bit D/A) |
| Sweep function | Frequency, Amplitude, Offset, Duty (Pulse only) |
| Program function | Max. 128 steps (Number of loops for each step, Number of total loops) |
| Other | Self-test function (Voltage), External input/output control |
| Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz) |
| Accessories | None |
