Spesifikasi dan Harga Hioki IR4058-20 Insulation Tester

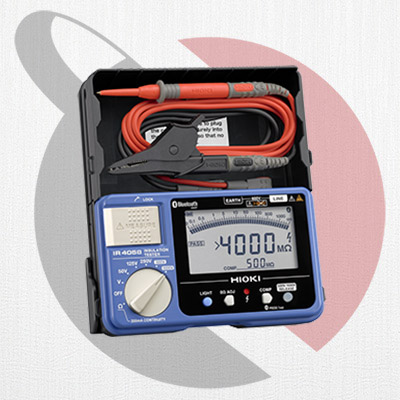

Hioki Insulation Tester dan Megaohmmeter menghadirkan desain all-in-one dilengkapi kasing yang kokoh dan penyimpanan test lead yang terpisah. Hioki IR4058-20 adalah tester resistansi digital isolasi 5-range, 50V hingga 1000V dengan bargraph, dan memberikan fungsi dan fitur yang efisien untuk membantu mempersingkat waktu kerja yang terkait dengan pengujian insulasi di lapangan.
| Rated output voltage | 50 V DC | 125 V DC | 250 V DC | 500 V DC | 1000 V DC |
|---|---|---|---|---|---|
| Effective maximum indicated value | 100 MΩ | 250 MΩ | 500 MΩ | 2000 MΩ | 4000 MΩ |
| Accuracy 1st effective measuring range MΩ | ±2 % rdg. ±2 dgt. 0.200 – 10.00 | ±2 % rdg. ±2 dgt. 0.200 – 25.0 | ±2 % rdg. ±2 dgt. 0.200 – 50.0 | ±2 % rdg. ±2 dgt. 0.200 – 500 | ±2 % rdg. ±2 dgt. 0.200 – 1000 |
| Lower limit resistance | 0.05 MΩ | 0.125 MΩ | 0.25 MΩ | 0.5 MΩ | 1 MΩ |
| Overload protection | 600 V AC (10s) | 660 V AC (10s) | |||
| DC voltage range | 4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges, Accuracy: ±1.3% rdg. ±4 dgt., Input resistance: 100 kΩ or higher | ||||
| AC voltage range | 420 V (0.1 V resolution) / 600 V (1 V resolution), 2 ranges, 50/60 Hz, Accuracy: ±2.3% rdg. ±8 dgt., Input resistance: 100 kΩ or higher, Average rectifier | ||||
| Low resistance range | For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less) | ||||
| Display | Semi-transmissive FSTN LCD with back lighting, bar-graph indicator | ||||
| Response time | Approx. 0.3 second for PASS/FAIL decision (based on in-house testing) | ||||
| Other functions | Indicate MΩ measurement value after a lapse of one minute, Live circuit indicator, Automatic electric discharge, Automatic DC/AC detection, Comparator, Drop proof, Auto power save | ||||
| Interface (IR4058 only) | Bluetooth® 4.0LE (Bluetooth® SMART), Supported devices: iOS 8 or later, Android™ 4.3 or later smartphone/tablet GENNECT Cross (free downloadable app) : display measured values, Simple logging function, Hold save function | ||||
| Power supply | LR6 (AA) alkaline batteries × 4, Continuous use: 20 hours (based on in-house testing), 10 hours (Bluetooth® ON) | ||||
| Dimensions and mass | 159 mm (6.26 in)W × 177 mm (6.97 in)H× 53 mm (2.09 in)D, 640 g (22.6 oz) (including batteries, excluding test leads) | ||||
| Accessories | Test lead L9787 ×1, Neck strap ×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×4 | ||||
Khusus Insulation tester Hioki IR4058-20: Data dapat diunduh ke tablet dan smartphone menggunakan aplikasi khusus Hioki yang tersedia dari Google Play atau App Store. Cari “HIOKI” dan unduh aplikasi “GENNECT Cross”.
Informasi Harga Hioki IR4058-20 Insulation Tester atau Megger
PT. Radius Allkindo Electric Kami Merupakan DISTRIBUTOR RESMI HIOKI (Authorized Distributor), sehingga customer tidak perlu khawatir untuk kualitas produk dan keaslian produk Hioki. Untuk Harga Hioki IR4058-20 insulation tester atau megger bisa chat WA langsung di pojok bawah (0821-2198-5207), atau menghubungi ke No. Telpon 021-21287455 maupun email ke: cs@radius.co.id.
