| Output terminal | Number of channels: 8 (each channel is isolated), Connector: 25-pin D-sub Max. rated voltage to earth: 25 V |
|---|---|
| Output items | DC voltage, DC current, resistance (simulated output) |
| Output range | DC voltage: -0.100 0 V to +5.300 0 V (setting resolution: 0.1 mV) DC current: 5 mA range: -5.000 0 mA to +5.000 0 mA, Setting resolution: 0.1 μA 1 mA range: -1.000 00 mA to +1.000 00 mA, Setting resolution: 0.01 μA 250 μA range: -250. 00 μA to +250.00 μA, Setting resolution: 0.01 μA 50 μA range: -50. 000 μA to +50. 000 μA, Setting resolution: 0.001 μA Resistance: 10 Ω to 1 MΩ, Setting resolution: 6 digits |
| Output accuracy | DC voltage: 5 V range, ±0.035% of setting ± 800 μV DC current: 5 mA range: ±0.050% of setting ± 4.0 μA 1 mA range: ±0.050% of setting ± 800 nA 250 μA range: ±0.050% of setting ± 200 nA 50 μA range: ±0.050% of setting ± 40 nA |
| Other | Self diagnostic, switch output terminals, estimate target connection, cancel offset |
| Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 280 g (9.9 oz) |
| Accessories | None |

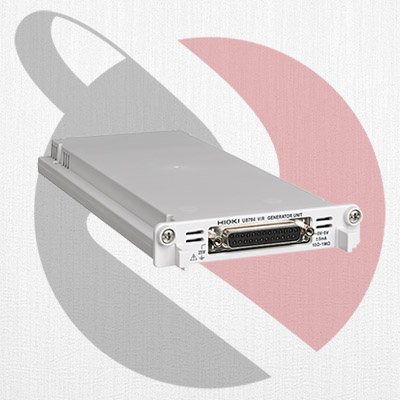

Hioki VIR Generator Unit U8794
Fitur Utama
• Sebagai perangkat inspeksi ECU, sangat ideal untuk menghasilkan sinyal simulasi berbagai sensor, inspeksi komponen elektronik, pemeliharaan peralatan
• Tegangan DC, arus DC, dan output simulasi tahanan
• Dalam generasi resistansi, tegangan yang akan dihubungkan diukur, arus keluaran dihitung dari nilai resistansi yang ditetapkan, dan output yang disimulasikan
• Digunakan dalam kombinasi dengan Memory HiCorder series MR8740T (tidak tersedia pada model lain)
• Isolasi antara setiap saluran keluaran dan antara saluran dan sasis
