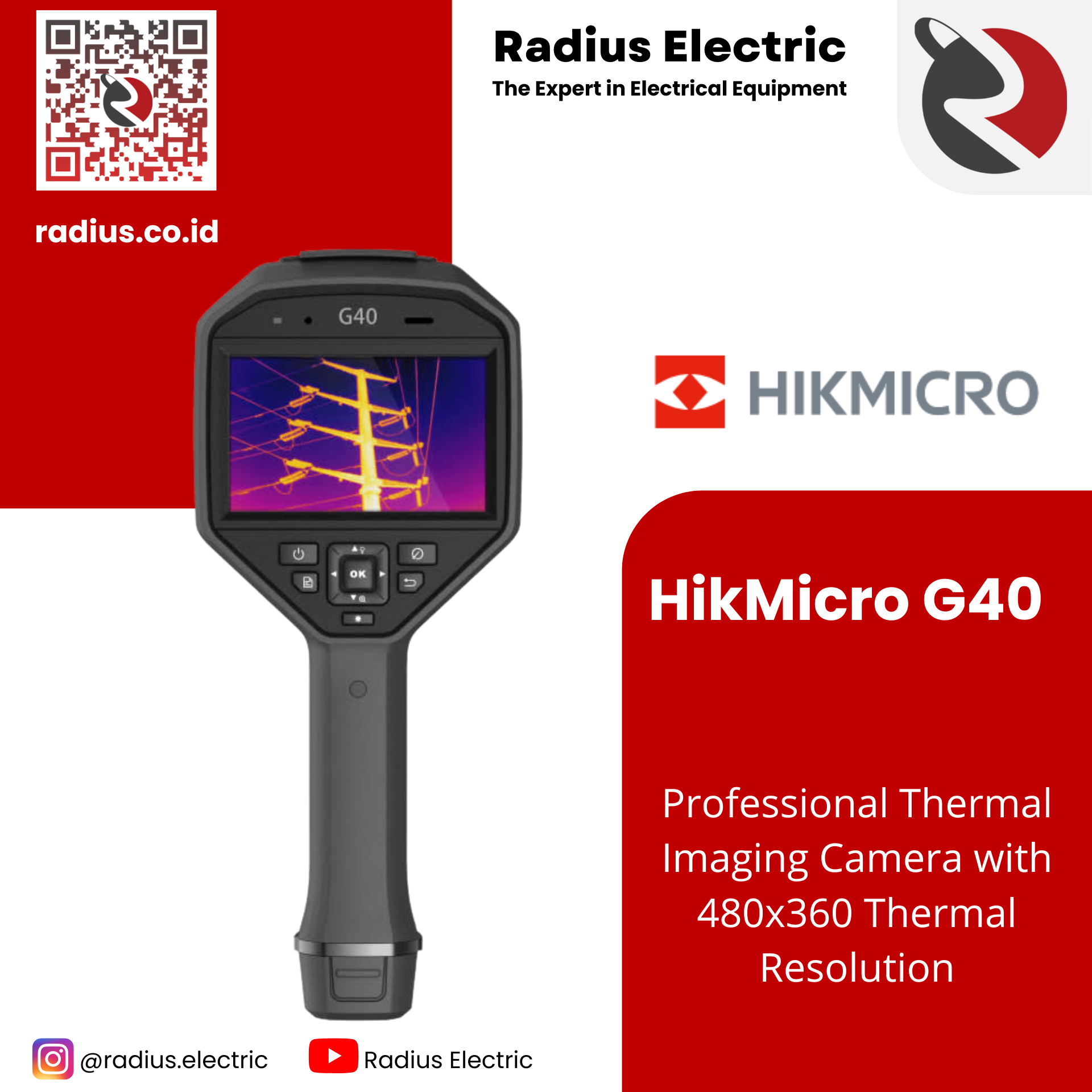

Hikmicro G40 Professional Thermal Imaging Camera with 480×360 Thermal Resolution

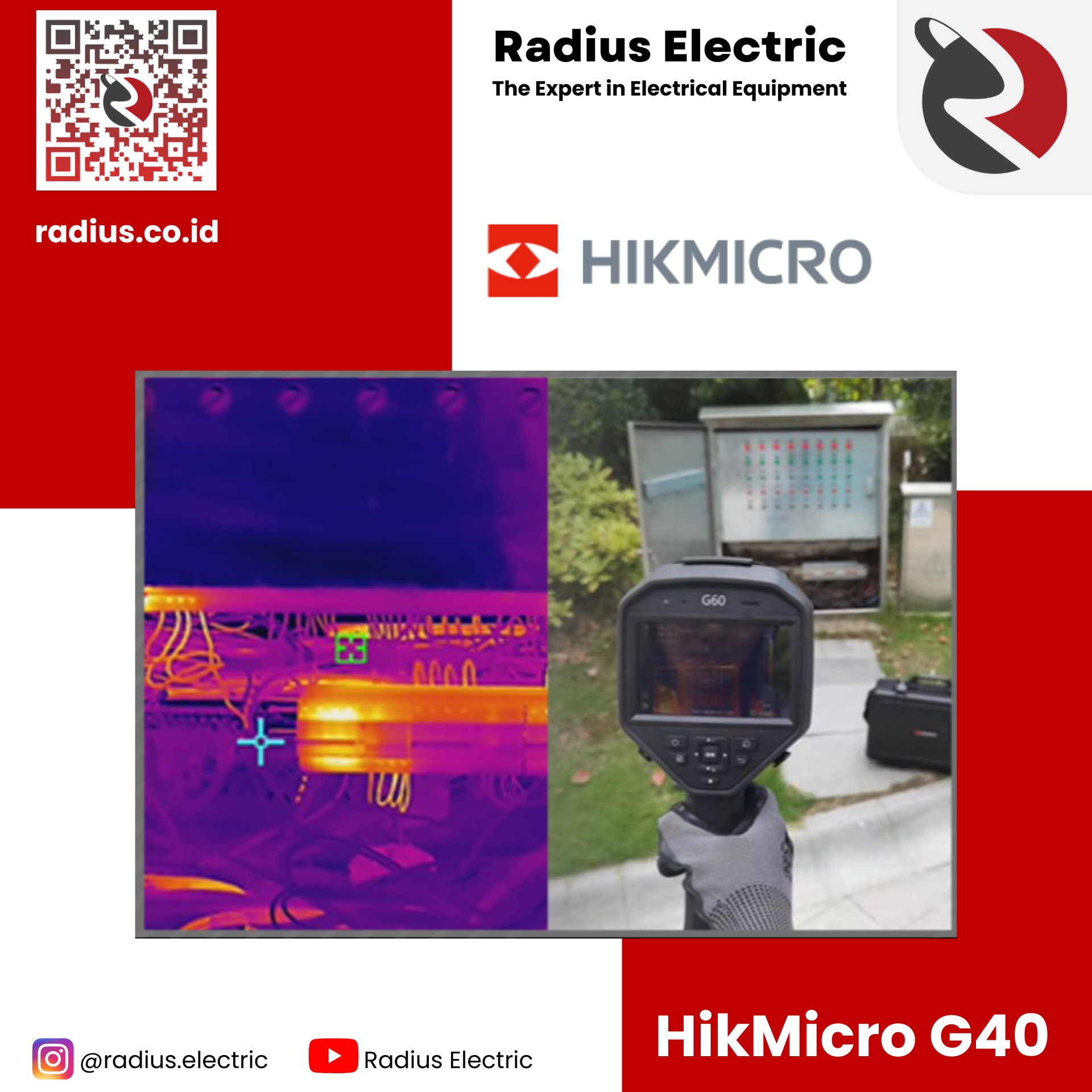

The HikMicro G40 is designed for temperature measurement to find invisible faults, electrical and HVAC faults for example. The professional thermal imaging camera is equipped with a 480 × 360 resolution HIKMICRO thermal detector and configurable 2MP, 5MP, 8MP optical detector. The thermography ranges from -20°C to 650°C (-4°F to 1202°F). The HikMicro G40 applications include use in various industries, such as substations, petrochemical plants, machining factories, industrial HVAC, and more.
HikMicro G40 Features and Functions
- HikMicro VOx detector 480×360 thermal resolution (NETD < 35 mK) – ultra high resolution
- Multiple image modes – Thermal, Fusion, PIP, Optical
- Measurement presets – center spot, hot spot, cold spot, user presets point/line/area
- Embedded laser distance meter – accurate and convenient in setting parameters, reports
- Multiple interchangeable lenses – wide-angle 0.5X, telephoto 2x, telephoto 3.3x
- Various focus modes – for clearer images, more accurate temperature measurements – continuous auto, auto, laser-assisted, manual
- 4.3in color LCD Touch Screen display
- 1-tap level and span – focus on one area with 1-tap of the screens to narrow the span
- WiFi Connectivity – connect to a mobile device, HikMicro Viewer App
- High-temperature alarm – audio/visual alerts to high temperatures
- Color alarm (isotherm) – above, below, interval, insulation
- LED work light – work safely in dark environments
- 7 Color palettes – white hot, black hot, rainbow, iron bow, red hot, fusion, rain
- HikMicro Analyzer Software – offers flexible ways to analyze info (points, rectangles and more)
- Auto-Range – changes temperature measurement based on detected temp of target
- 50 Hz fast image frequency – smooth video, measurements if panning scenes, moving targets
- 4hrs continuous running battery life
- Field of View – 19° x 14° – interchangeable lens choices give different FOV for various scenarios
- Storage – removable micro SD card, 60K images, 54 hours video, JPEG with measurement data
Ultra High Resolution
A highly sensitive VOx detector (NETD < 35 mK) with 640 x 512 (327 680 pixels) IR resolution, provides a distinct thermal vision of the target.
Multiple Image Modes
Thermal, Fusion, PIP and Optical modes to suit your preferred.
Multiple Interchangeable Lens Choices
Interchangeable lenses 0.5X, 2X, 3.3X are available for choices. Different tele converters give different Field Of View, offering more choices when facing different scenarios.
Various Focus Modes
Support 4 types of focus modes to reach more clear images and lead to more accurate temperature measurements.

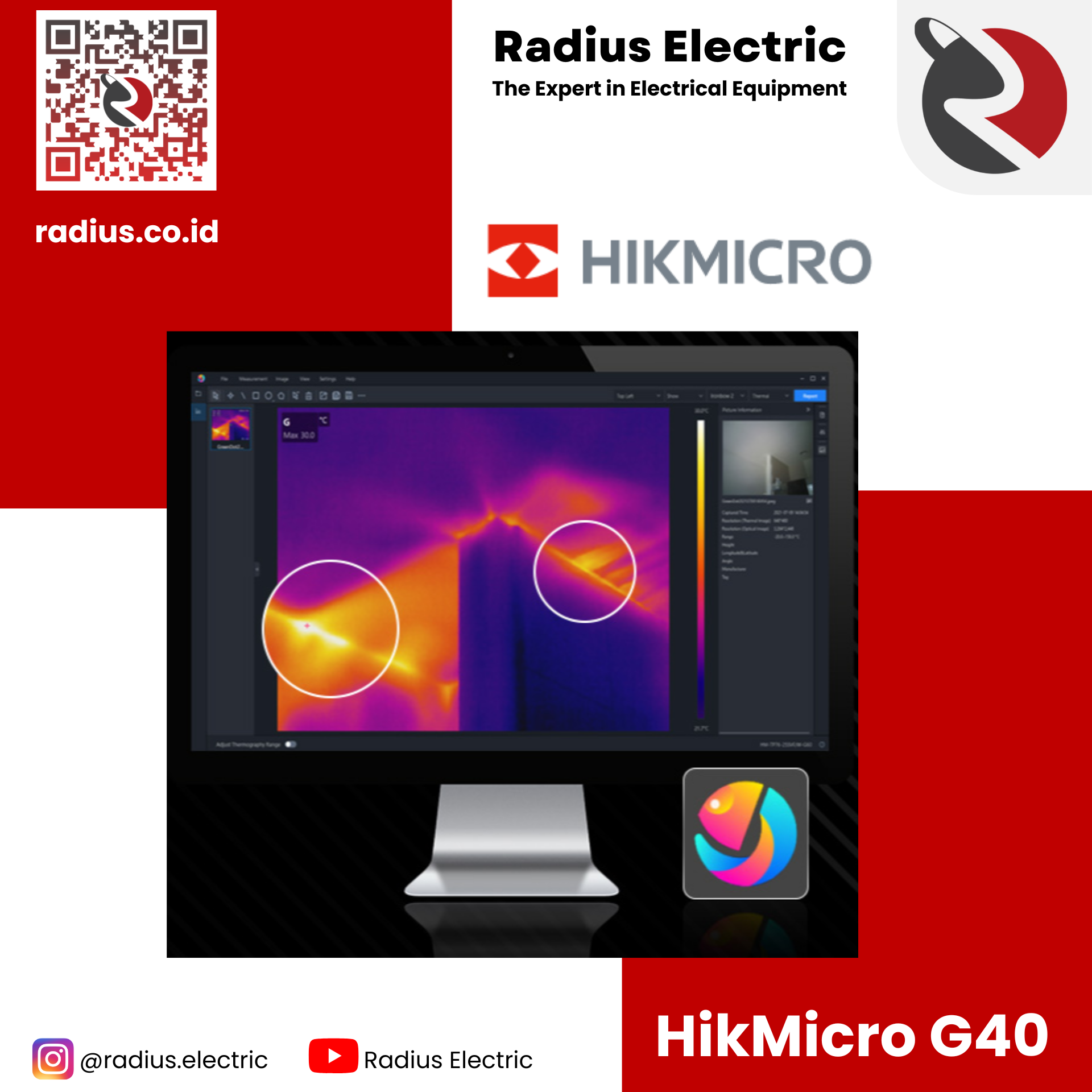

HIKMICRO Analyzer Software
Included software offers flexible ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.
Auto-Range
A highly sensitive HIKMICRO VOx detector (NETD < 40 mK) provides a distinct thermal vision of the target.
Laser Pointer
The Laser Pointer helps show the position of the center point on actual object.
Wi-Fi Connectivity
Connect to mobile devices via built-in Wi-Fi to quickly share images and videos through HIKMICRO Viewer App.
1-Tap Level & Span
Allows to focus one the area of the image you are interested in by narrowing the span with 1-Tap of the screen.
