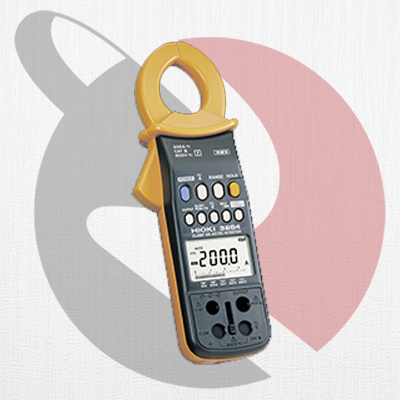

Clamp Meter atau tang amper Hioki adalah perangkat pengukur terbaik di kelasnya yang menggabungkan keahlian Hioki dalam teknologi sensor saat ini. Hioki clamp meter atau tang amper 3284 adalah AC / DC current dan voltage clamp meter dengan kemampuan output analog dan fungsi hold puncak.
Basic specifications
| DC Current range | 20.00/ 200.0 A, Basic accuracy: ±1.3 % rdg. ±3 dgt. |
|---|---|
| AC Current range | 20.00/ 200.0 A (10 Hz to 2 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.3 % rdg. ±3 dgt. |
| DC Voltage range | 30.00 V to 600 V, 3 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. |
| AC Voltage range | 30.00 V to 600 V, 3 ranges (10 to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.0 % rdg. ±3 dgt. |
| Crest factor | 2.5 or less (1.5 at 200 A, 1.7 at 600 V) |
| Monitor, Analog output | DC, or AC 1 V/ f.s., Level output, Waveform output: DC to 20 kHz bandwidth (±3dB) |
| Resistance, Continuity check | N/A |
| Frequency range | 1.00 Hz to 1000 Hz, Basic accuracy: ±0.3 % rdg. ±1 dgt. |
| Other functions | AC+DC mode, Maximum/ Minimum/ Average value record function, Data hold, Peak hold, Auto power off, Auto zero |
| Display | Display refresh rate: 4 times/s (FAST), 1 time/3s (SLOW), 4 times/s (bar graph) |
| Power supply | 6F22 (Stacked manganese battery) ×1, Continuous use: 25 hours, or AC adapter 9445-02/-03 |
| Core jaw dia. | φ 33 mm (1.30 in) |
| Dimensions and mass | 62 mm (2.44 in) W × 230 mm (9.06 in) H × 39 mm (1.54 in) D, 460 g (16.2 oz) |
| Accessories | Test Lead L9207-10 ×1, Carrying Case 9399 ×1, Hand strap ×1, 6F22 (Stacked manganese battery) ×1, Instruction manual ×1 |
