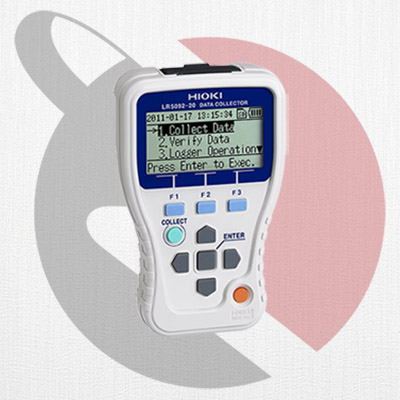

Hioki LR5092 adalah pengumpul data untuk mengumpulkan data secara nirkabel dari Pencatat Data Seri LR5000. Cukup tempatkan Pengumpul Data ke pencatat data untuk mentransfer data menggunakan inframerah, kemudian unggah data ke PC menggunakan USB atau kartu SD. Maksimal 60.000 data x 16 saluran dapat dikumpulkan hingga 500 kali dengan 2 baterai.
| Function | Send data from a data logger to the internal memory or an SD card, then display a graph. Send settings and the time from the internal memory or SD card to a data logger. Send data from a data logger to a PC. Send settings and the time from a PC to a data logger. |
|---|---|
| Communications method | Between data loggers: Infrared communications With PC: USB 2.0 |
| Display | Data logger setting conditions Collected data (as list, graph, values, etc.) |
| Internal memory (capacity of data) | 60,000 data elements ×16ch (instantaneous value mode) 15,000 data elements ×16ch (statistical value mode) Data logger settings (max. 1 set) |
| Removable storage media | SD memory card Save data and max. 16 items configuration |
| Power supply | DC 3 V (LR6 (AA) Alkaline battery ×2) USB bus power (12 hours or 500 times of data collection) |
| Dimensions and mass | 91 mm (3.58 in) W × 141 mm (5.55 in) H × 31 mm (1.22 in) D, 215 g (7.6 oz) (excluding batteries and SD memory card) |
| Accessories | Instruction manual ×1, Operation guide ×1, LR6 (AA) Alkaline battery ×2, USB cable (1 m) ×1, CD (Application software “LR5000 Utility”) × 1 |
■ LR5000 utility specifications
| Operating environment | OS: Windows 7 (32/64bit, .NET Framework 2.0 or more), Vista (32bit, SP1 or more), XP (SP2 or more) *USB interface (when using the Communication Base 3910/3911, a COM port is required) |
|---|---|
| Function | • Settings: Communicates via infrared light with LR5000 series loggers to send and receive settings. • Graph function: Displays graphs of up to 16 channels, displays statistical data, etc. • Print function: Print graphs, Print statistical data. • Export function (data CSV output, paste into Excel) • Import function (loads text files from the Clamp On Power HiTester 3169-20/-21 [only demand parameter with a recording interval of at least 1 sec.]) • Processing of data: Scaling, Power calculation, Energy cost calculation, Operating ratio calculation, Integration, Dew point temperature, Calculate between channels |
