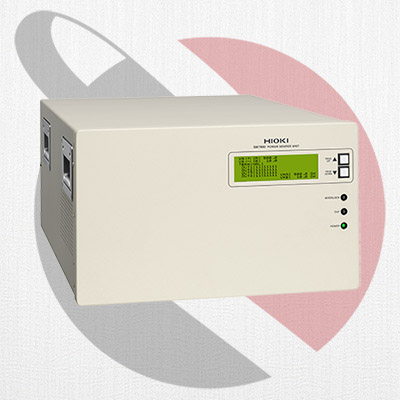

Spesifikasi Dan Harga Hioki SM7860 Power Source Unit
Seri Hioki SM7860 memungkinkan untuk mengatur tegangan output dua saluran pada 8 saluran atau 16 saluran, dan memungkinkan hingga 32 saluran output. Seri Hioki SM7860-5x / SM7860-6x adalah sumber daya 32-channel, 500V / 1000V untuk Hioki SM7810 Super Megohm Meter, memberikan polaritas positif dan negatif yang diperlukan untuk jalur uji MLCC.
Supported device | Super MΩ HiTester SM7810 Object to which voltage is applied: MLCC (the Multilayer Ceramic Capacitor) |
---|---|
Generation accuracy | Output voltage accuracy: ±2% of set value ± 0.5 V (with no load) Inter-channel error: ± 0.01 V or less (between outputs on the same line with no load) |
Interfaces | GP-IB, RS-232C, EXT I/O |
Power supply | SM7860-51 to -58: 100 V AC, SM7860-61 to -68: 220 V AC, 50/60 Hz, 860 VA |
Dimensions and mass | 425 mm (16.73 in) W × 249 mm (9.80 in) H × 581 mm (22.87 in) D, 47 kg (1657.9 oz) [SM7860-57 / -67] : 34 kg (1199.3 oz) |
Accessories | Power cable ×1, Instruction manual ×1, Operating precautions ×1 |
Model No. (Order Code)
Hioki SM7860-51 | 100V AC power supply |
---|---|
Hioki SM7860-52 | 100V AC power supply |
Hioki SM7860-53 | 100V AC power supply |
Hioki SM7860-54 | 100V AC power supply |
Hioki SM7860-55 | 100V AC power supply |
Hioki SM7860-56 | 100V AC power supply |
Hioki SM7860-57 | 100V AC power supply |
Hioki SM7860-58 | 100V AC power supply |
Hioki SM7860-61 | 220V AC power supply |
Hioki SM7860-62 | 220V AC power supply |
Hioki SM7860-63 | 220V AC power supply |
Hioki SM7860-64 | 220V AC power supply |
Hioki SM7860-65 | 220V AC power supply |
Hioki SM7860-66 | 220V AC power supply |
Hioki SM7860-67 | 220V AC power supply |
Hioki SM7860-68 | 220V AC power supply |
Informasi Harga Hioki SM7860 Power Source Unit
PT. Radius Allkindo Electric Kami Merupakan DISTRIBUTOR RESMI HIOKI (Authorized Distributor), sehingga customer tidak perlu khawatir untuk kualitas produk dan keaslian produk Hioki. Untuk Harga Hioki SM7860 Power Source Unit bisa chat WA langsung di pojok bawah (0821-2198-5207), atau menghubungi ke No. Telpon 021-21287455 maupun email ke: cs@radius.co.id.
