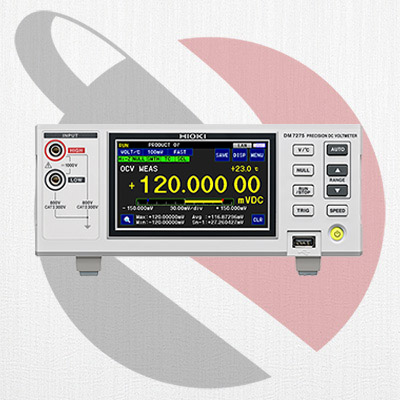

Hioki DM7275 Precision DC Voltmeter memberikan akurasi pengukuran unggul 20 ppm (0,002%), tingkat akurasi yang dituntut oleh aplikasi canggih seperti uji penuaan baterai lithium-ion. Fitur utama lainnya termasuk pemeriksaan kontak untuk memaksimalkan keandalan pengukuran, kompensasi binning dan suhu, membuat voltmeter ideal untuk pengembangan dan pembuatan baterai Li-ion, kapasitor lapisan ganda listrik, komponen kendaraan listrik, dan perangkat generasi berikutnya.
| DC Voltage | 100 mV ( ±120.000 00 mV) to 1000 V ( ±1000.000 0 V ), 5 ranges |
|---|---|
| Basic accuracy | 10 V range: ±0.0020% rdg. ±12 μV |
| Temperature | -10.0°C to 60.0°C (14.0°F to 140°F), combined with sensor Z2001: ±0.5°C (5.0°C to 35°C) |
| Integration time | Integration time unit: PLC/ms (PLC setting: 0.02/ 0.2/ 1/ 10/ 100, ms setting: 1 ms to 9999 ms) |
| Measurement support functions | Smoothing function, null, temperature compensation, scaling, over-range display, self-calibration, auto-hold, contact check |
| Management support functions | Comparator, BIN, absolute value judgment, label display, statistics, measurement information, communication monitor, EXT. I/O TEST |
| Contact check | Check signal: 10 mV rms, threshold value: 0.5 nF to 50 nF (Cannot use in the 100 V/1000 V ranges), Contact check integration time: 1 ms to 100 ms |
| Interfaces | Standard: LAN (100BASE-TX), EXT. I/O, USB flash drive / USB device (USB2.0 Full-Speed) Optional: GP-IB (-02 type only) / RS-232C (-03 type only) / PRINTER (-03 type only) |
| Power supply | 100 to 240 V AC, 50/60 Hz, 30 VA |
| Dimensions and mass | 215 mm (8.46 in) W × 88 mm (3.46 in) H × 232 mm (9.13 in) D (-01 type): 2.3 kg (81.1 oz), (-02/-03 type): 2.4 kg (84.7 oz) |
| Accessories | Instruction manual ×1, power cord ×1, application disk (CD-R) ×1 |
Catatan: Probe pengukuran tidak termasuk. Beli probe yang sesuai untuk aplikasi Anda secara terpisah
