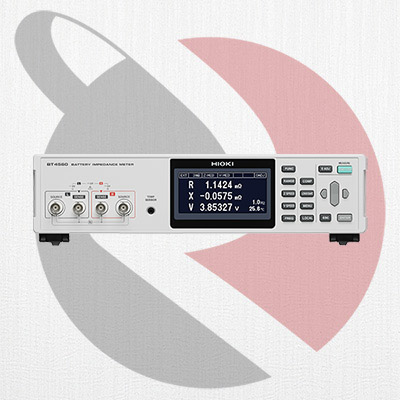

Hioki benchtop battery testers mendukung pengukuran kecepatan tinggi secara serentak di lini produksi yang terus berkembang semakin pesatnya baterai lithium-ion beresistansi rendah. Penguji impedansi baterai BT4560 mengukur impedansi baterai lithium-ion menggunakan metode pengukuran AC-IR frekuensi rendah tanpa mengisi dan mengeluarkan baterai, secara substansial mengurangi waktu yang diperlukan untuk memeriksa resistansi internal sel baterai.
| Allowable input voltage | Up to 5 V |
|---|---|
| Measured information | Impedance, voltage, temperature |
| Impedance measurement | Parameters: R, X, Z, θ, Frequency: 0.1 Hz to 1050 Hz, Measurement ranges: 3.0000 mΩ, 10.0000 mΩ, 100.000 mΩ Testing current: 3 mΩ range: 1.5 Arms, 10 mΩ range: 500 mArms, 100 mΩ range: 50 mArms |
| Voltage measurement | Measurement range: 5.00000 V (single range), Measurement time: 0.1 s (Fast) to 1.0 s (Slow) |
| Temperature measurement | Range: -10.0 °C to 60.0 °C, Measurement time: 2.3 s |
| Basic accuracy | Z: ±0.4% rdg. θ: ±0.1 °, V: ±0.0035% rdg. ±5 dgt. , Temperature: ±0.5 °C (at 10.0 to 40.0 °C) |
| Functions | Comparator, self-calibration, sample delay, average, contact check, measurement current error, and other |
| Interfaces | RS-232C/USB (virtual COM port) * Cannot be used simultaneously EXT. I/O (NPN/PNP can be switched) |
| Power supply | 100 to 240 V AC, 50/60 Hz, 80 VA max |
| Dimensions and mass | 330 mm (12.99 in) W × 80 mm (3.15 in) H × 293 mm (11.54 in) D, 3.7 kg (130.5 oz) |
| Accessories | Power cord ×1, Instruction manual ×1, Zero-adjustment board ×1, USB cable (A-B type) ×1, CD-R (communication instruction manual, PC application software, USB driver) ×1 |
Catatan: Produk ini tidak dilengkapi dengan probe pengukuran. Silakan pilih dan beli opsi probe pengukuran yang sesuai untuk aplikasi Anda secara terpisah.
