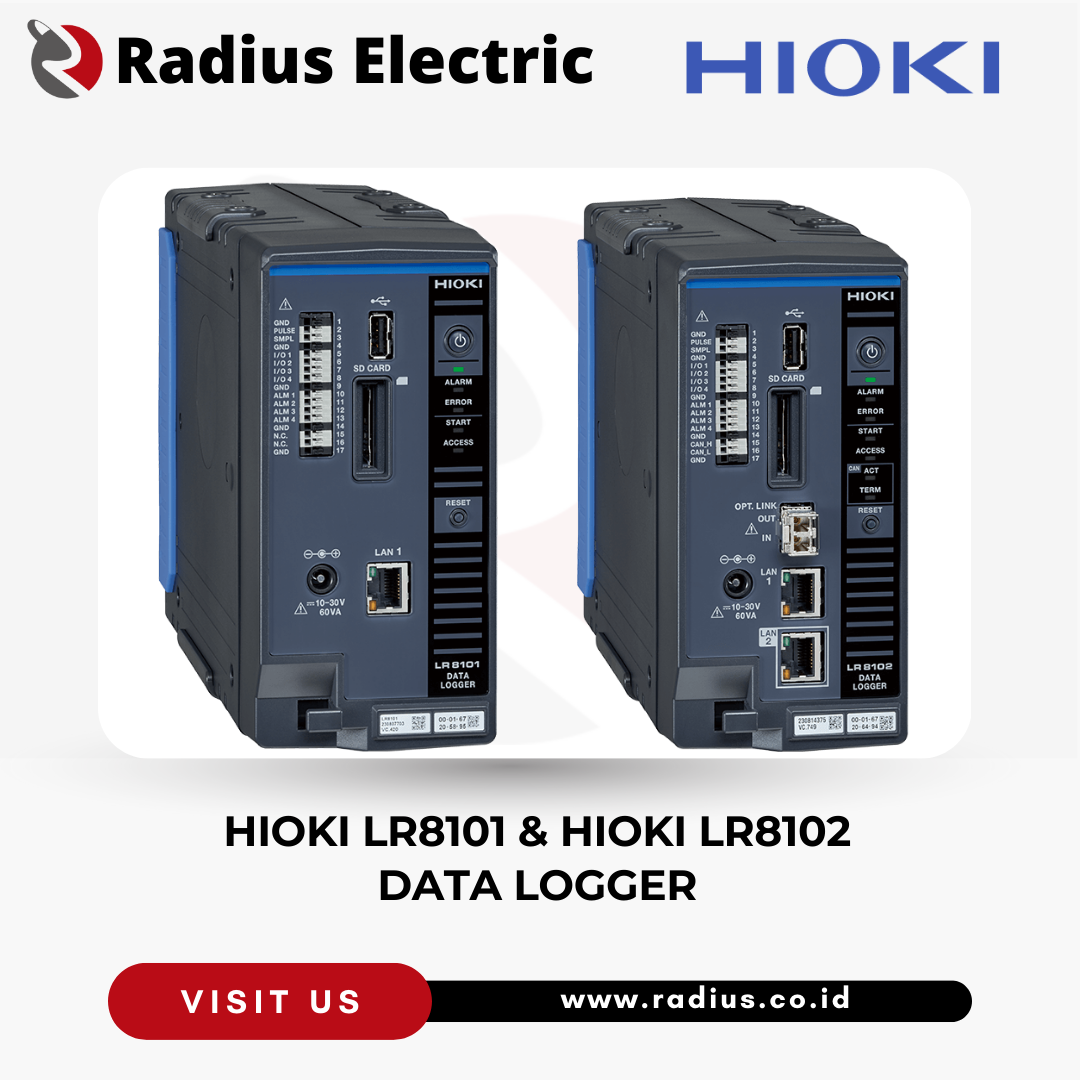

Hioki LR8101 dan LR8102 Data Logger
Sistem pengukuran diminta untuk memberikan kemampuan canggih seiring dengan kemajuan penggunaan energi dan teknologi e-mobilitas yang efisien.
Data logger Hioki LR8101 dan LR8102 mendorong solusi yang mengubah masalah sistem pengukuran menjadi keuntungan, misalnya dengan menjamin keamanan sistem tegangan tinggi, mengakomodasi sejumlah besar saluran pengukuran, dan mewujudkan kompatibilitas data dengan sistem upstream.
Spesifikasi Hioki LR8101 dan LR8102 Data Logger
| Product model | Data Logger LR8102 | Data Logger LR8101 |
|---|---|---|
| Modules that can be connected | See [Options] > [Connectable measurement modules] | |
| Maximum number of module connections | 10 | |
| Maximum number of synchronizable loggers | 10 (Requires optical connection cables) |
N/A |
| Power supply | AC adapter: AC Adapter Z1016 (operates on 12 V DC ±10%) External power supply: 10 V DC to 30 V DC |
|
| Operating temperature and humidity range | −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing) | |
| Number of LAN ports | 2 | 1 |
| Communication interface | [LAN1 functionality]
Collecting data and setting recording conditions using Logger Utility Setting the initial IP address using Logger Utility Setting and controlling recording using communication commands Manually acquiring data using an FTP Server Automatically sending data via FTP (FTP client) HTTP server function XCP on Ethernet (TCP) NTP client function[LAN2 functionality] XCP on Ethernet (UDP) Measurement data can be output by UDP |
[LAN1 functionality]
Collecting data and setting recording conditions using Logger Utility Setting the initial IP address using Logger Utility Setting and controlling recording using communication commands Manually acquiring data using an FTP Server Automatically sending data via FTP (FTP client) HTTP server function XCP on Ethernet (TCP) NTP client function |
| External media | USB Drive, Operation guaranteed: Z4006 (16 GB) SD memory card/SDHC memory card supported, Operation guaranteed: Z4001 (2 GB), Z4003 (8 GB) |
|
| External control terminal | Pulse/logic input (1), External sampling input (1), External input and output (4), Alarm output (4), GND terminal (5), CAN interface (1) | Pulse/logic input (1), External sampling input (1), External input and output (4), Alarm output (4), GND terminal (5) |
| Dimensions and weight | – No module: Approx. 80W × 166H × 238D mm (3.1W × 6.5H × 9.4D in.) (excluding protruding parts), Approx. 1.5 kg (3.3 lbs) – With one M7100 installed: Approx. 134W × 166H × 263D mm (5.3W × 6.5H × 10.4D in.) (excluding protruding parts) – With ten M7100 installed: Approx. 620W × 166H × 263D mm (24.4W × 6.5H × 10.4D in.) (excluding protruding parts) |
|
| Included accessories | Operating Precautions ×1, Startup Guide ×1, DVD ×1 (Startup Guide, Instruction Manual, Logger Utility, Logger Utility Instruction Manual, CAN Editor, CAN Editor Instruction Manual, Communication Command Instruction Manual) | |
NoteThis product does not include an AC adapter. An AC Adapter Z1016 or the Power Cable L1012 must be purchased separately.
DetailsSee the Instruction Manual for more detailed specification information.
Model No. (Order Code)
| Hioki LR8101 | Standard model |
|---|---|
| Hioki LR8102 | Advanced model |
Hioki LR8101 dan Hioki LR8102 tidak dapat digunakan sendiri. Modul tersebut harus digabungkan dengan satu atau lebih modul pengukuran (dijual terpisah).
Produk ini tidak termasuk adaptor AC. Adaptor AC Z1016 atau Kabel Daya L1012 harus dibeli terpisah.
Untuk penyimpanan data, pilih Hioki SD Memory Card Z4001 (2 GB), SD Memory Card Z4003 (8 GB), atau USB Drive Z4006 (16 GB).
Produk ini tidak termasuk adaptor AC. Adaptor AC Z1016 atau Kabel Daya L1012 harus dibeli terpisah.
Untuk penyimpanan data, pilih Hioki SD Memory Card Z4001 (2 GB), SD Memory Card Z4003 (8 GB), atau USB Drive Z4006 (16 GB).
Kemampuan Tak Tertandingi untuk Mengambil Data dari Baterai Tegangan Tinggi
Cocok untuk Pengujian Pengisian/Pengosongan Baterai
Konsep produk
Paket baterai terdiri dari sejumlah besar sel yang dihubungkan secara seri.
Karena variabilitas dalam karakteristik sel dapat menyebabkan penurunan kinerja baterai secara keseluruhan, sangat penting untuk memastikan perilaku tegangan dan suhu pada tingkat sel.
Produsen sedang merancang baterai bertegangan tinggi untuk digunakan pada kendaraan listrik (EV).
Ketika tegangan baterai meningkat dari 400 V menjadi 800 V, semakin sulit mengukur tegangan dan suhu sel baterai dengan aman. Instrumen yang digunakan untuk melakukan pengujian pengisian/pengosongan baterai bertegangan tinggi ini sekarang harus memiliki tegangan terminal-ke-ground dan modul-ke-modul yang lebih tinggi dibandingkan sebelumnya.
Modul yang ideal untuk digunakan dalam mengukur tegangan sel tumpukan dalam kemasan baterai dan pengujian pengisian/pengosongan pada jalur produksi sel
Pilih dan gabungkan modul yang sesuai untuk aplikasi Anda!
| Module | Voltage/Temp Module M7100 | Voltage/Temp Module M7102 |
|---|---|---|
| Battery packs | For 600 V to 1500 V battery packs | For 600 V or lower battery packs |
| Max. rated terminal-to-ground voltage | 1500 V DC, 1000 V AC (CAT II) | 600 V DC, 600 V AC (CAT II) |
| Max. rated module-to-module voltage | 1500 V DC, 1000 V AC | 600 V DC, 600 V AC |
| Max. number of channels | 15 channels per module | 30 channels per module |
| Sampling rate | Up to 5 ms | Up to 10 ms |
| External view |  |
 |

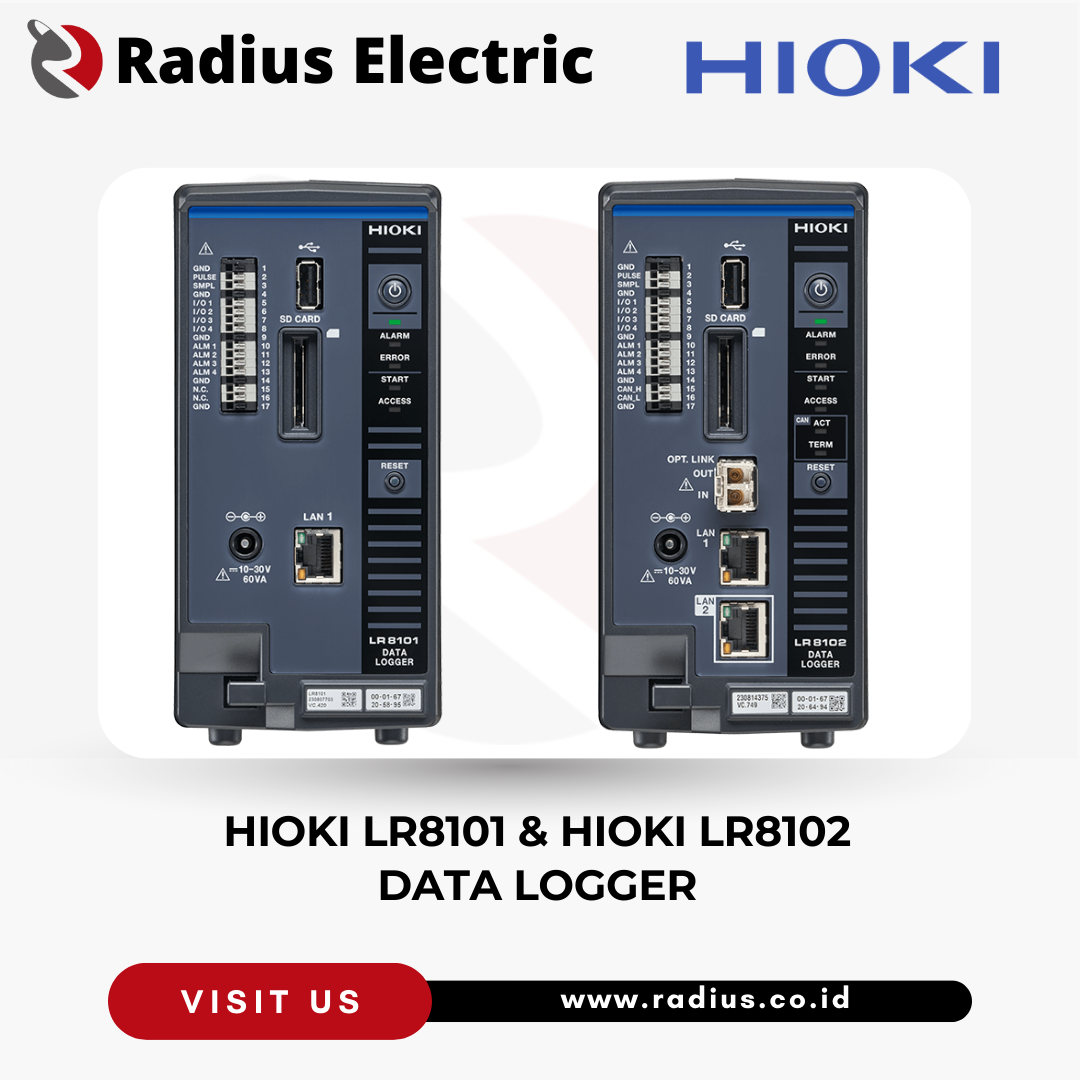

Differences between the LR8101 (Standard model) and LR8102 (Advanced model)
| Functionality | LR8102 Advanced model |
LR8101 Standard model |
|---|---|---|
| Connect up to 10 measurement modules | ✓ | ✓ |
| Save data on an SD card or USB drive | ✓ | ✓ |
| Control the instrument and transfer data using communication commands | ✓ | ✓ |
| Data output based on UDP (Transfer high-speed data) (*1) |
✓ | N/A |
| Multiple loggers synchronized for measurement (*2) |
✓ | N/A |
| Data output via CAN (*3) |
✓ | N/A |
| External view |  |
 |
*1: Data output based on UDP
Measurement data are output for every sampling in real time. The fastest speed is achieved with intervals of 5 ms.
This is useful when realtime processing is required, such as HIL.
Measurement data are output for every sampling in real time. The fastest speed is achieved with intervals of 5 ms.
This is useful when realtime processing is required, such as HIL.
*2: Multiple loggers synchronized for measurement
Synchronized measurement is enabled with an optional Optical Connection Cable L6101 (1 m) or Optical Connection Cable L6102 (10 m).
The measurement data from all of the synchronized instruments can be output from LAN2 of the primary instrument.
Synchronized measurement is enabled with an optional Optical Connection Cable L6101 (1 m) or Optical Connection Cable L6102 (10 m).
The measurement data from all of the synchronized instruments can be output from LAN2 of the primary instrument.
*3: Data output via CAN
The measured value can be output via a Controller Area Network (CAN).
The value can be used for data integration with the information of an in-vehicle device, such as the battery management system (BMS).
The measured value can be output via a Controller Area Network (CAN).
The value can be used for data integration with the information of an in-vehicle device, such as the battery management system (BMS).
