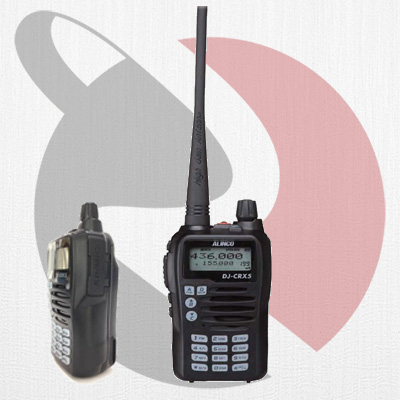

HT Alinco DJ-CRX5

Specification dan Harga Alinco DJ-CRX5

FEATURES

• Large, dot-matrix, 3 color-selectable display and keypad
• Semi-Duplex dualband, V/V-U/U and FM broadcast receiver
• 200 memory channels, any mix of VHF/UHF
• Internal VOX
• Alphanumeric channel labels
• Direct frequency input from keypad
• Professional-grade signaling features including DTMF,CTCSS,DCS,Tone-burst tones with Talk-around, Reverse, BCLO, TOT and more!
• Variety of scanning modes including Programmed, CTCSS/DCS tone, VFO, FM broadcast and Memory with skip feature.
• Wide and narrow FM TX/RX
• High power Li-Ion battery pack, stand charger and beltclip included

GENERAL

Frequency : VHF 136-174Mhz, UHF 400-480Mhz
Radio FM : 76-108Mhz
Channel capacity : 200 channel
Channel spacing : 25KHz (wide band), 12.5KHz (narrow band)
Phase locked step : 0.1Khz
Operation voltage : 7.4V DC
Battery life : More than 12 hours (1800mAh)
Frequency stability : 2.5ppm
Operation temperature : -20C~+55C
Size : 118 x 61 x 40 mm (with battery pack)
Weight : approx 240g (with battery pack and antenna)

RECEIVING
Sensitivity (12dB SINAD) : <=0.25uV, <=0.35uV
Adjacent channel selectivity : >=65dB, >=60dB
Intermodulation : >=60dB, >=60dB
Spurious rejection : >=70dB, >=70dB
Hum & Noise : >=45dB, >=40dB
Audio distortion : <=5%

TRANSMITTING
Power output : VHF 5W/ 2W/ 1W, UHF 4W/ 2W/ 1W
Modulation : 16K F3E, 11K F3E
Adjacent channel power : >=65dB, >=60dB
Hum & Noise : >=40dB, >=40dB
Spurious Emission : <=-36dB, <=-36dB
Audio distortion : <=5%

Isi Kotak:
HT Alinco DJ-CRX5
Battery pack Li-ion 7.4V 1800mAh
Charger + adaptor
Antena
Belt clip
Hands trap
Buku manual

Produk Terkait

• Motorola XiR M8660i / XiR M8668i

Informasi Harga Alinco DJ-CRX5 hubungi kami di wa 0821-2198-5207
