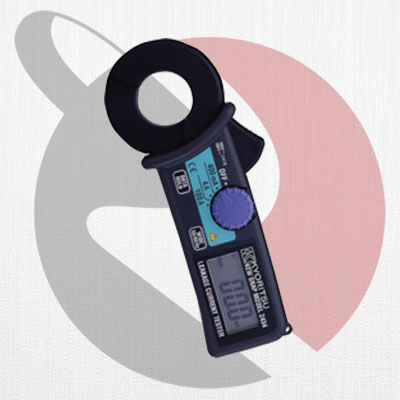

Kyoritsu Leakage Clamp Meters 2434

Fitur Utama:

• Sedikit terpengaruh oleh medan magnet liar eksternal.
• 20mA AC maks. di dekat konduktor 15mm-dia yang membawa AC 100A
• Frequency Selector Switch untuk menghilangkan efek harmonisa.
• Resolusi 0,1mA.

SKU: KYORITSU-2434 Categories: Clamp Meter, Kyoritsu

Description
Reviews (0)

AC A (50/60Hz)	400mA/4/100A ±2%rdg±4dgt
AC A (WIDE)	400mA/4/100A ±2%rdg±4dgt [50/60Hz] ±3%rdg±5dgt [40 – 400Hz]
Conductor size	Ø28mm max.
Frequency response	40 – 400Hz
Effect of external stray magnetic field Ø15mm 100A	20mA AC max.
Safety Standard	IEC 61010-1 CAT III 300V IEC 61010-2-032
Power source	R03 (AAA) (1.5V) × 2
Dimensions	169(L) × 75(W) × 40(D)mm
Weight	220g approx.
Included Accessories	9097 Carrying Case R03 × 2 Instruction Manual
