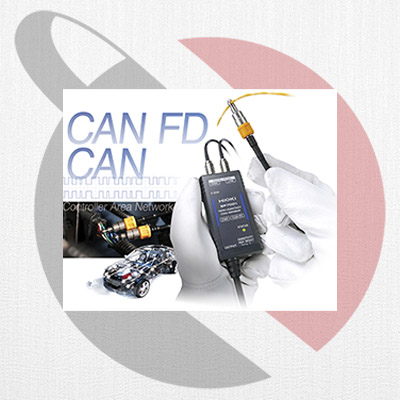

SP7001 dan SP7002 adalah sensor sinyal CAN dan CAN FD yang menggunakan teknologi non-kontak untuk secara akurat menangkap sinyal bus CAN yang diperlukan untuk evaluasi dan pengembangan peralatan generasi berikutnya. Tingkatkan pengujian produktivitas dan efisiensi dengan menghilangkan kebutuhan untuk mengelupas isolasi kabel atau menggunakan sub-harness yang secara tradisional diperlukan untuk mendapatkan sinyal.
| Detection method | Capacitive-coupled signal detection *No bare-wire connections |
|---|---|
| Detectable cables | AVS/AVSS-compliant cables, External diameter: 1.2 mm (0.05 in) to 2.0 mm (0.08 in) |
| Number of channels | 2 (SP7100) |
| Compatible communications speeds | SP7001, SP7002: CAN 125 kbit/s to 1 Mbit/s SP7001: CAN FD 125 kbit/s to 3 Mbit/s |
| Total delay time | 130 ns (typical) |
| CAN terminal resistance | 60 Ω (typical), built-in |
| Signal output connector | D-sub 9-pin female (CH1, CH2) |
| Operating temperature, humidity | Temperature: -40 °C to 85 °C (-40 °F to 185 °F) Humidity: -40 °C to 60 °C (-40 °F to 140 °F), 80% RH or less (with no condensation), 60 °C to 85 °C (140 °F to 185 °F), 60% RH or less (with no condensation) |
| Power supply | (1) AC Adapter Z1008 (100 V to 240 V AC), rated power: 8 VA (including AC adapter) (2) External power supply (10 V to 30 V DC), rated power: 3 VA |
| Dimensions and mass | SP7001, SP7002: 44 mm (1.73 in) W × 85 mm (3.35 in) H × 20 mm (0.79 in) D, 180 g (6.3 oz), Cable length: 2.5 m (8.20 ft) SP7100: 55 mm (2.17 in) W × 120 mm (4.72 in) H × 25 mm (0.98 in) D, 130 g (4.6 oz), Cable length: 0.3 m (0.98 ft) SP9200: Probe: φ 11.6 mm (0.46 in) × 33.7 mm (1.33 in) H, Guard hook: φ 5 mm (0.20 in) × 11.8 mm (0.46 in) H, 26 g, Cable length: 0.5 m (1.64 ft) |
| Accessories (SP7001, SP7002) | Quick stard manual (Japanese and English) ×1 each, Operating precautions ×1 |
| Accessories (SP7100) | Quick stard manual (Japanese and English) ×1 each, Operating precautions ×1, Spiral tube ×1, Power cable L9500 ×1, Alligator clip ×1, Ground connection cable ×1 |
