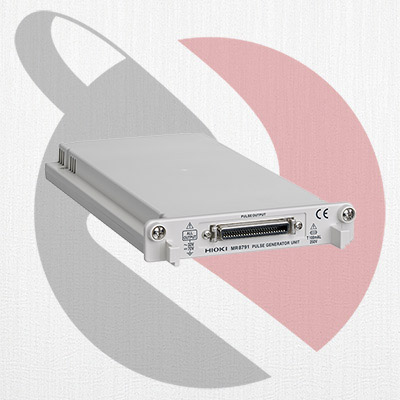

Pulse Generator Unit MR8791 adalah modul plug-and-play untuk Hioki Memory HiCorders untuk melakukan pengujian simulasi kontrol papan kontrol pada peralatan seperti mesin, airbag, sistem rem, dan power steering.
| Output terminal | Number of channels: 8, Connector: D-sub, half-pitch, 50-pin Max. rated voltage to ground: 33 V rms AC or 70 V DC (between unit and output channels) Logic output/Open collector output |
|---|---|
| Output mode 1 | Pattern output: Read frequency: 0 Hz to 120 kHz, 2048 logic patterns Pulse output: Frequency 0 Hz to 20 kHz, Duty 0.1% to 99.9% |
| Output mode 2 | Logic output: Output voltage level: 0 V to 5 V (H level: 3.8 V or more, L level: 0.8 V or less) Open collector output: Absolute maximum rated voltage for collector/emitter: 50 V Overcurrent protection: 100 mA |
| Other | Self-test function |
| Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz) |
| Accessories | None |
