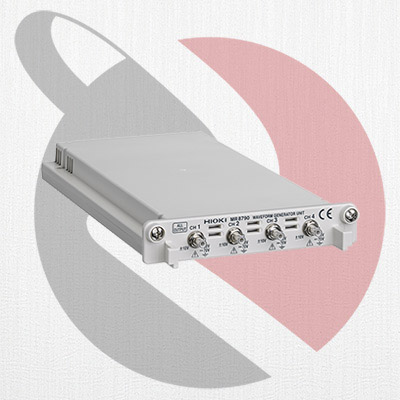

Waveform Generator Unit MR8790 adalah modul plug-and-play untuk Hioki Memory HiCorders yang menawarkan output tegangan DC presisi tinggi untuk menghasilkan sinyal yang mensimulasikan fluktuasi tegangan pada level yang sangat rendah.
| Output terminal | Number of channels: 4, SMB terminal (Output impedance: 1 Ω or less) Max. rated voltage to ground: 33 V rms AC or 70 V DC |
|---|---|
| Output voltage range | -10 V to 10 V (Amplitude setting range: 0 V to 20 V p-p, Setting resolution: 1 mV) |
| Max. output current | 5 mA |
| Output function | DC, Sine wave (Output frequency range: 0 Hz to 20 kHz) |
| Accuracy | Amplitude accuracy: ±0.25% of setting ±2 mV p-p (1 Hz to 10 kHz) Offset accuracy: ±3 mV DC output accuracy: ±0.6 mV |
| Other | Self-test function (Voltage, Current) |
| Dimensions and mass | 06 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz) |
| Accessories | None |
