P9000-01 | P9000-02 | |
Measurement functions | Waveform monitor output only Frequency characteristics: DC to 100 kHz, -3 dB |
Waveform monitor output/AC RMS value output (switchable) Wave mode frequency characteristics: DC to 100 kHz, -3 dB RMS mode frequency characteristics: 30 Hz to 10 kHz; response time: 300 ms (rising) or 500 ms (falling) |
---|---|---|
Division ratio | 1000:1 or 100:1 (user selectable) | |
DC amplitude accuracy | ±0.5% f.s. (f.s. = 1.0 V; voltage division ratio: 1000:1) (f.s. = 3.5 V; voltage division ratio: 100:1) | |
RMS amplitude accuracy | ±1% f.s. (30 Hz to 1 kHz non-inclusive, sine wave), ±3% f.s. (1 kHz to 10 kHz, sine wave) | |
Input resistance, capacity | Between H and L: 10.5 MΩ, 5 pF or less (at 100 kHz) | |
Max. allowable input | 1000 V AC/DC | |
Max. rated voltage to earth | 1000 V AC/DC (CAT III) | |
Operating temperature | -40 ˚C (-40 ˚F) to 80 ˚C (176˚F) | |
Power supply | (1) AC Adapter Z1008 (100 to 240 V AC, 50/60 Hz), 6 VA (including AC adapter) or 0.9 VA (probe only), (2) USB bus power (5 V DC, USB Micro-B receptacle), 0.8 VA, (3) External power supply (2.7 V to 15 V DC) | |
Dimensions and mass | 128 mm (5.04 in)W × 36 mm (1.42 in)H × 22 mm (0.87 in)D, 170 g (6.0 oz), Cord length: Input: 70 cm (2.30 ft) ; output: 1.5 m (4.92 ft) | |
Accessories | Instruction manual ×1, alligator clips ×2, carrying case ×1 |

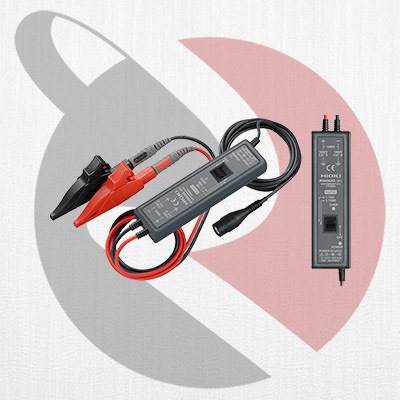

Hioki Differential Probe P9000
• Probe kompak untuk lingkungan CAT III 1000V
• Mode gelombang: Mengamati bentuk gelombang sesaat
• Mode RMS: Amati bentuk gelombang nilai RMS
• Area penggunaan utama
1. Sirkuit baterai tegangan tinggi pada EV, HEV, dan mobil lain
2. Sirkuit bertegangan tinggi pada peralatan terkait energi seperti sel fotovoltaik
3. Sirkuit saluran listrik komersial (480 Vrms, dll.)
4. Suara lonjakan tegangan tinggi dari inverter, motor, solenoida, dll.
