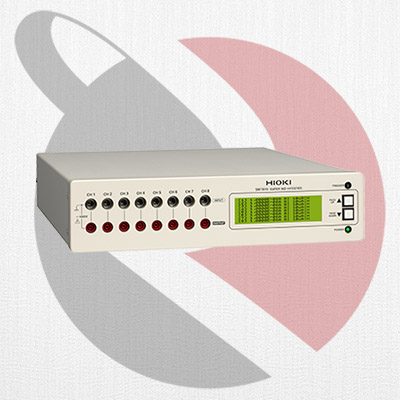

Hioki SM7810 Super Megaohm Hitester

Fitur Utama
• Uji arus bocor MLCC pada kecepatan tercepat 6,8 ms secara bersamaan di 8 saluran
• Melakukan pengujian arus bocor berkecepatan tinggi MLCC berkapasitas besar dalam kisaran arus tinggi (1mA)
• Tingkatkan keandalan pengujian dengan menggunakan fungsi pemeriksaan kontak
• Bangun sistem yang fleksibel dengan memanfaatkan pengaturan individual dari setiap saluran

SKU: HIOKI-SM7810 Kategori: Megaohmmeters, Hioki Tag: 1pA to 1mA current testing, 6.8ms testing over 8ch simultaneously, Max. 1×10^15 Ω resistance testing, multi-layer ceramic capacitors (MLCC)

Deskripsi
Ulasan (0)

Spesifikasi Dan Harga Hioki SM7810 Super Megaohm Hitester

Hioki SM7810 adalah tester resistansi isolasi 8 channel 1×10 ^ 210 hingga 1×10 ^ 15Ω untuk menguji kebocoran arus pada kapasitor keramik multi-layer (MLCC).

Nomor Model (Kode Pesanan)

Hioki SM7810	Catu daya 100 / 110V AC
HiokiSM7810-20	Catu daya AC 220V

Number of channels	8 channels (parallel and simultaneous measurement)
Applied voltage	Supply voltage from external power source (voltage input terminal on the rear panel)
Measurement range	Current: 1 pA to 1 mA, Ranges: 100 pA/ 1 nA/ 10 nA/ 100 nA/ 1 µA/ 10 µA/ 100 µA/ 1 mA Resistance: 1 × 10^2 Ω to 1 × 10^15 Ω
Measurement speed INDEX typical time	FAST: 6.8 ms, MED: 26.0 ms, SLOW: 100.0 ms, SLOW2: 320.0 ms
Basic measurement accuracy (1µA range, FAST)	Current accuracy: ±(2.0+ (0.5 µA / (Measured current value)) ) % Resistance accuracy: Current accuracy + Voltage generation accuracy of external power supply
Testing voltage setting	0.1 V to 1000.0 V (Resolution: 0.1 V)
Contact check	Judges the contact state by comparing the measured capacitance to a reference value
Other functions	Trigger delay, averaging, contact check, jig capacity open correction, Measured value comparison and judgment, jig resistance open correction functions
Interfaces	GP-IB, RS-232C, EXT I/O
Power supply	SM7810: AC 100 V/110 V, 50/60 Hz, 30 VA SM7810-20: AC 220 V, 50/60 Hz, 30 VA
Dimensions and mass	425 mm (16.73 in) W × 99 mm (3.90 in) H × 488 mm (19.21 in) D, 10.5 kg (370.4 oz)
Accessories	Power cord ×1, Instruction manual ×1, Voltage input connector L2220 ×1, Spare fuse (built into inlet) ×1, Rubber feet ×4

Informasi Harga Hioki SM7810 Super Megaohm Hitester

PT. Radius Allkindo Electric Kami Merupakan DISTRIBUTOR RESMI HIOKI (Authorized Distributor), sehingga customer tidak perlu khawatir untuk kualitas produk dan keaslian produk Hioki. Untuk Harga Hioki SM7810 Super Megaohm Hitester bisa chat WA langsung di pojok bawah (0821-2198-5207), atau menghubungi ke No. Telpon 021-21287455 maupun email ke: cs@radius.co.id.
