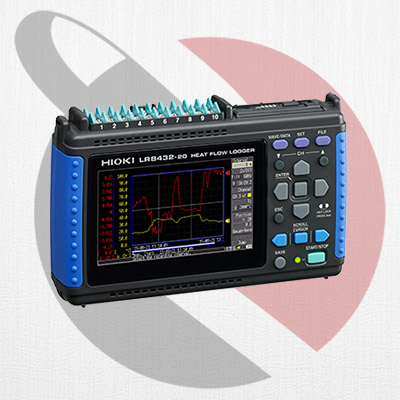

Memori Hioki HiLoggers adalah pencatat data berkecepatan tinggi untuk merekam beberapa saluran sinyal tegangan, suhu, pulsa atau rotasi, menyediakan isolasi lengkap antara saluran dan ketahanan derau yang kuat. Hioki LR8432 adalah data logger 10-channel portable yang dirancang khusus untuk pengukuran aliran panas. Heat Flow Logger sangat ideal untuk mengevaluasi kinerja isolasi dan menganalisis penyebab perubahan suhu.
| Specialized functions for heat flow measurement | ■ Easy scaling settings：directly enter the sensitivity of the heat flow sensor ■ Calculations：waveform processing function for the analysis of temperature and heat flow (Simple average, moving average, integration, heat transmission coefficient), Integration with numerical calculations |
|---|---|
| Analog inputs | [No. of channels] 10 isolated analog channels using scanning input method (M3 mm dia. screw terminal block) [Voltage measurement range] ±10 mV to ±60 V, 1-5V, Max. resolution 500 nV [Temperature : thermocouples] −200 ˚C to 1800 ˚C (depending on sensor), thermocouples (K, J, E, T, N, R, S, B), Max. resolution 0.1 ˚C [Humidity] not available [Max. allowable input] 60 V DC [Max. rated voltage between input channels] [Max. rated voltage to earth] 30 AC Vrms, 60 V DC (max. voltage between input channel terminals, and from terminals to chassis ground without damage) |
| Pulse inputs | [No. of channels] 4 pulse input channels (requires CONNECTION CABLE 9641, all pulse inputs share common ground with the main unit) [Totalized pulses] 0 to 1000M (count) (No-voltage ‘a’ contact, open collector or voltage input), Max. resolution 1 pulse [Rotation count] 0 to 5000/n (r/s), Resolution 1/n (r/s) * n = pulses per rotation (1 to 1,000) [Max. allowable input] 0 to 10 V DC [Max. rated voltage between input channels] [Max. rated voltage to earth] Non-isolated |
| Recording intervals | 10 ms to 1 hour, 19 selections (All input channels are scanned at high speed during every recording interval) |
| Selectable filters | 50 Hz, 60 Hz, or OFF (digital filtering of high frequencies on analog channels) |
| Memory capacity | Internal storage: 3.5 M-words, External storage: CF card or USB memory stick (only the HIOKI CF cards are guaranteed for correct operation) |
| External interface | USB 2.0 mini-B receptacle ×1; Functions: Control from a PC, Transfers files from the installed CF card to a PC (cannot transfer files from the connected USB memory stick to a PC via USB communication), Data copy between CF card and USB memory stick |
| Display | 4.3-inch WQVGA-TFT color LCD (480 × 272 dots) |
| Functions | Save data to the CF Card or USB memory stick in real time, Numerical Calculations, etc. |
| Power supply | AC Adapter Z1005: 100 to 240 VAC (50/60 Hz), 30 VA Max. (including AC adapter), 10 VA Max. (main unit only) Battery Pack 9780: Continuous use 2.5 hours (@25°C/77°F), 3 VA Max. External power source: 10 to 16 V, 10 VA Max. (please contact HIOKI distributor for cable; less than 3 m/9.84 ft cable length) |
| Dimensions and mass | 176 mm (6.93 in) W × 101 mm (3.98 in) H × 41 mm (1.61 in) D, 550 g (19.4 oz) (Battery Pack 9780 not installed) |
| Accessories | Measurement Guide ×1, CD-R (Instruction manual PDF, Logger Utility Instruction Manual PDF, Data acquisition application program Logger Utility) ×1, USB cable ×1, AC Adapter Z1005 ×1 |
Aplikasi Utama
* Pasar otomotif (mengevaluasi aliran panas ke interior kendaraan dari kompartemen mesin, menilai kerusakan panas pada bagian kendaraan, mengidentifikasi sumber panas, dll.)
* Pasar konstruksi perumahan (mengevaluasi kinerja isolasi bahan bangunan, mengevaluasi kinerja sistem pemanas berseri-seri, dll.)
* Pasar otomotif (mengevaluasi aliran panas ke interior kendaraan dari kompartemen mesin, menilai kerusakan panas pada bagian kendaraan, mengidentifikasi sumber panas, dll.)
* Pasar konstruksi perumahan (mengevaluasi kinerja isolasi bahan bangunan, mengevaluasi kinerja sistem pemanas berseri-seri, dll.)
