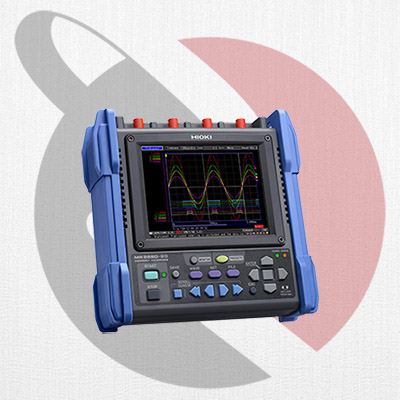

Hioki Memory HiCorders adalah perangkat pemantauan dan perekaman gelombang kecepatan tinggi yang secara bersamaan dapat mengukur berbagai fenomena yang berubah cepat karena isolasi penuh antara saluran dan dari setiap saluran ke tanah. MR8880 adalah perekam akuisisi data (DAQ) yang dibangun dengan 4 saluran analog yang dapat menerima input langsung 600V, memungkinkan pengukuran sistem 3 fase.
| Number of channels | 4 analog channels + 8 logic channels (standard) Note: Isolated analog channels, isolated input and frame, logic has common GND |
|---|---|
| Measurement ranges (10 div full-scale) | 4 channels of voltage measurement; mode switchable between instantaneous waveform or RMS value, 10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range RMS value mode: 30 Hz to 10 kHz, Crest factor: 2 |
| Max. rated voltage | Between terminals: 600 V AC/DC, Between terminal to earth: 600 V AC/DC CAT III; 300 V AC/DC CAT IV |
| Frequency characteristics | DC to 100 kHz (±3dB) |
| Time axis (High-speed function) | 100 µs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range |
| Recording intervals (Real-time function) | 100 µs to 1 minute, 19 selections (simultaneous sampling in all channels) |
| Measurement functions | High-speed function (high speed recording) Real-time function (actual time recording) |
| Memory capacity | 14-bits × 1M-words/ch (1 word = 2 bytes) |
| Removable storage | CF card slot ×1 (Up to 2 GB), USB 2.0 memory ×1 |
| Printing | [Printer unit is option] 112 mm (4.41 in) × 18 m (59.06 ft), thermal paper roll, Recording speed : 10 mm (0.39 in)/sec Note: Printing is not supported when using alkaline batteries |
| Display | 5.7-inch VGA-TFT color LCD (640 × 480 dots) |
| Displayable languages | English, Japanese, Chinese |
| Communication interfaces | USB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control |
| Power supply | AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 45 VA (include AC adapter, when Real-time recording), 107 VA (include AC adapter, when Real-time recording and printing) Battery pack Z1000: AC adapter has priority when used in combination with battery pack, recharge with AC adapter 3 hours, Continuous use 3 hours (with back-light ON) LR6 (AA) alkaline batteries ×8, Continuous use 40 minutes, (with back-light ON, cannot be used with the Printer unit) DC power supply: 10 to 28 V DC (cable available by special order) |
| Dimensions and mass | 205 mm (8.07 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 1.66 kg (58.6 oz) (with the Battery pack installed) When printer is combined – with main unit: 303 mm (11.93 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 2.16 kg (76.2 oz) (with the Battery pack installed) |
| Accessories | Instruction manual ×1, AC adapter Z1002 ×1, Alkaline battery box ×1, Strap ×1, USB cable ×1, Application disk (Wave viewer Wv, Communication commands table) ×1 |
