- Simultaneous Power & Power quality measurements
- Power/ Harmonics/ Waveform/ Power quality are recorded at all CHs. (Voltage: 3ch, Current 4ch)
- Helpful support functions
- Quick Start Guide, Wiring check and Sensor detection for easy and reliable measurement
- Measurement with high accuracy
- Guaranteed accuracy:±0.3%rdg (energy),±0.2%rdg (voltage/ current)
Complies with the International Standard IEC 61000-4-30 Class S and the European Standard EN50160
- Guaranteed accuracy:±0.3%rdg (energy),±0.2%rdg (voltage/ current)
- Remote monitoring on PC and Android device
- Remote checking of measurement in real-time is possible via Bluetooth communication.
- Recorded data can be saved in the supplied SD card.
- EN50160 report can be generated after survey by PC software.
- Various Clamp Current Sensors
- Various types of clamp and flexible sensors are available:
from 1000mA Range up to 3000A Range and Earth leakage measurements - Energy consumption check on site
Trend and demand graphs for easy recognition.
TFT color display with high resolution.
- Various types of clamp and flexible sensors are available:
- IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V

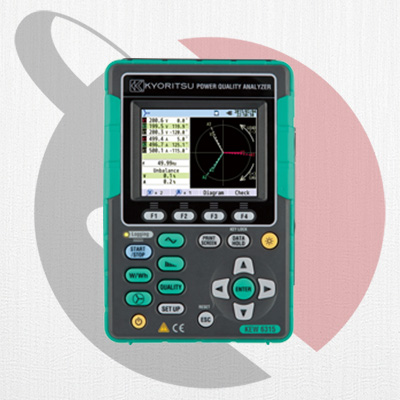

KEW Smart 6315 |
||
 |
 |
Free Android software “KEW smart 6315” is available on “Google Play Store”•Supporting Android ver. 3.0 or higher •WVGA (800 × 480) resolution or higher |
| Please search “KEW Smart” in Google Play Store. Communication charge may be incurred separately to download application. |
||
Power Quality Analyzer
| Wiring connections | 1P2W, 1P3W, 3P3W, 3P4W | |
|---|---|---|
| Measurements and parameters | Voltage, Current, Frequency, Active power, Reactive power, Apparent power,Active energy, Reactive energy, Apparent energy, Power factor (cos θ), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption, Transients/Over voltage, Inrush current, Unbalance rate), Capacitance calculation for PF correction unit, Flicker |
|
| Voltage (RMS) | ||
| Range | 600.0 / 1000V | |
| Accuracy | ±0.2%rdg±0.2%f.s. (sine wave, 40 – 70Hz) | |
| Allowable input | 1 – 120% of each range (rms). 200% of each range (peak) | |
| Display range | 0.15 – 130% of each range | |
| Crest factor | 3 or less | |
| Sampling speed of Voltage transient | 24µs | |
| Current (RMS) | ||
| Range | 8128 ( 50A type ) : 5000mA / 50.00A / AUTO 8127 ( 100A type ) : 10.00 / 100.0A / AUTO 8126 ( 200A type ) : 20.00 / 200.0A / AUTO 8125 ( 500A type ) : 50.00 / 500.0A / AUTO 8124/8130 ( 1000A type ) : 100.0 / 1000A / AUTO 8146/8147/8148 ( 10A type ) : 1000mA / 10.00A / AUTO 8129 ( 3000A type ) : 300.0 / 1000 / 3000A 8133 ( 3000A type ) : 300.0 / 3000A / auto |
|
| Accuracy | ±0.2%rdg±0.2%f.s. + accuracy of clamp sensor (sine wave, 40 – 70Hz) | |
| Allowable input | 1 – 110% of each range (rms). 200% of each range (peak) | |
| Display range | 0.15 – 130% of each range | |
| Crest factor | 3 or less | |
| Active power | ||
| Accuracy | ±0.3%rdg±0.2%f.s. + accuracy of clamp sensor (power factor 1, sine wave, 40 – 70Hz) |
|
| Influence of power factor | ±1.0%rdg (reading at power factor 0.5 against power factor 1) | |
| Frequency meter range | 40 – 70Hz | |
| Power supply (AC Line) | AC100 – 240V / 50 – 60Hz / 7VA max | |
| Power supply (DC battery) | Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6 Battery life approx. 3h (LR6, Backlight OFF) |
|
| Internal memory | FLASH memory (4MB) | |
| PC card interface | SD card (2GB) | |
| PC communication interface | USB Ver2.0, Bluetooth Ver2.1 + EDR Class2 | |
| Display | 320 × 240 (RGB) Pixel, 3.5inch color TFT display | |
| Display update period | 1 sec | |
General
| Applicable standards | IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V Pollution degree 2 IEC 61010-2-030, IEC 61010-031, IEC 61326, EN 50160 IEC 61000-4-30 Class S, IEC 61000-4-15, IEC 61000-4-7 |
|---|---|
| Temperature and humidity range | 23±5ºC, less than 85% RH (without condensation) |
| Operating temperature & humidity range | 0 – +45ºC, less than 85% RH (without condensation) |
| Storage temperature & humidity range | -20 – +60ºC, less than 85% RH (without condensation) |
| Power supply (AC Line) | AC100 – 240V / 50 – 60Hz / 7VA max |
| Power supply (DC battery) | Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6 Battery life approx. 3h (LR6, Backlight OFF) |
| Dimensions | 175(L) × 120(W) × 68(D) mm |
| Weight | Approx. 900g |
| Included Accessories | 7141B (Voltage test lead) 7170 (Power cord) 7219 (USB cable) 8326-02 (SD card 2GB) 9125 (Carrying case for KEW 6315) 9135 (Carrying case for KEW 6315-03) Input terminal plate × 6, KEW Windows for KEW 6315 (software), Quick manual, Alkaline size AA battery (LR6) × 6 |
| Optional Accessories | 8124, 8125, 8126, 8127, 8128 (Load current clamp sensor) 8129, 8130, 8133 (Flexible clamp sensor) 8146, 8147, 8148 (Leakage and Load current clamp sensor) 8312 (Power supply adaptor) 9132 (Magnetc carrying case) |
