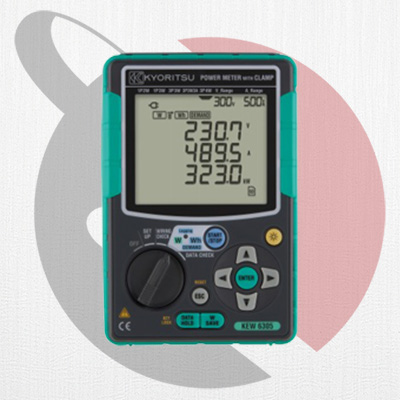

Kyoritsu Power Meter KEW 6305

• Pemantauan, pencatatan dan analisis real-time yang komprehensif untuk sistem tunggal dan 3 fase
• Pengukuran Tegangan, Arus, Faktor Daya dan Frekuensi
• Analisis daya (daya Aktif, Jelas dan Reaktif)
• Analisis energi (daya Aktif, Jelas dan Reaktif)
• Akurasi daya aktif: ± 0,3% rdg ± 0,2% f.s.
• Fungsi pemeriksaan kabel otomatis untuk mencegah koneksi yang salah
• Kemampuan memori besar (2GB) menggunakan antarmuka kartu SD bawaan
• Pengukuran real-time & jarak jauh menggunakan aplikasi Android
• pengukuran sinkron antara dua unit KEW 6305
• Berbagai pilihan sensor penjepit memungkinkan pengukuran dari 0,1A hingga 3000A
• Instrumen secara otomatis mengenali jenis sensor penjepit yang terhubung dengannya
• Perangkat lunak Windows untuk analisis dan pengaturan data melalui port USB atau Bluetooth

SKU: KYORITSU-6305 Kategori: Other, Kyoritsu

Deskripsi
Ulasan (0)

KEW Smart 6305

Free Android software “KEW smart 6305”
is available on “Google Play Store”

•Supporting Android ver. 3.0 or higher
•WVGA (800 × 480) resolution or higher

Please search “KEW Smart” in Google Play Store.
Communication charge may be incurred separately to download application.

Wiring connections	1P2W, 1P3W, 3P3W, 3P3W3A, 3P4W
Measurements	Voltage, Current, Frequency, Active power
Parameters	Apparent power, Reactive power, Active energy, Apparent energy, Reactive energy, Power factor (cos θ), Neutral current
Voltage range[RMS]	150.0 / 300.0 / 600.0V
Voltage accuracy	±0.2%rdg±0.2%f.s. (sine wave, 45 – 65Hz)
Current range[RMS]	8128 ( 50A type ) : 1.000 / 5.000 / 10.00 / 25.00 / 50.00A / auto 8127 ( 100A type ) : 2.000 / 10.00 / 20.00 / 50.00 / 100.0A / auto 8126 ( 200A type ) : 4.000 / 20.00 / 40.00 / 100.0 / 200.0A / auto 8125 ( 500A type ) : 10.00 / 50.00 / 100.0 / 250.0 / 500.0A / auto 8124 ( 1000A type ) : 50.00 / 100.0 / 200.0 / 500.0 / 1000A / auto 8130 ( 1000A type ) : 50.00 / 100.0 / 200.0 / 500.0 / 1000A / auto 8129 ( 3000A type ) : 300.0 / 1000 / 3000A 8133 ( 3000A type ) : 60.00 / 300.0 / 600.0 / 1500 / 3000A / auto
Current accuracy	±0.2%rdg±0.2%f.s. + Accuracy of Clamp sensor (sine wave, 45 – 65Hz) (*) +1%f.s. at the lowest range
Display range	5 – 130% of each range(Voltage) 1 – 130% of each range(Current)
Crest factor	Voltage: up to 2.5, Current: up to 3.0 (with 90% fs or less)
Effect of power factor	Active power: ±1.0%rdg cos θ=±0.5 (PF=1)
Frequency meter range	40.0 – 70.0Hz
Frequency meter accuracy	±3dgt
Accuracy precondition	PF=1, Sine wave, 45 – 65Hz, 23ºC±5ºC
Display update period	1 second
Applicable standards	IEC 61010-1 CAT III 600V
Operating temperature & humidity range	0 – +50ºC, less than 85%RH (without condensation)
Storage temperature & humidity range	-20 – +60ºC, less than 85%RH (without condensation)
Power supply (AC Line)	AC100 – 240V±10% (50/60Hz)
Power supply (DC battery)	LR6 or Ni-MH (HR-15-51) ×6 (Battery charger not included), Battery life approx. 15h (LR6)
Power consumption	10VA (max.)
communication interface	USB, Bluetooth
PC card interface	SD card (2GB)
Dimensions	175(L)×120(W)×65(D) mm
Weight	Approx. 800g (including batteries)
Included Accessories	7141B (Voltage test lead set: 4pcs) 7148 (USB cable) 7170 (Power cord) 9125 (Carrying case) 8326-02 (SD card 2GB) KEW WINDOWS (PC Software) Battery (LR6)×6 Quick manual
Optional Accessories	8124, 8125, 8126, 8127, 8128 (Clamp sensor) 8129/8130/8133 (Flexible clamp sensor) 8312 (Power supply adaptor) 9132 (Magnetic carrying case)
