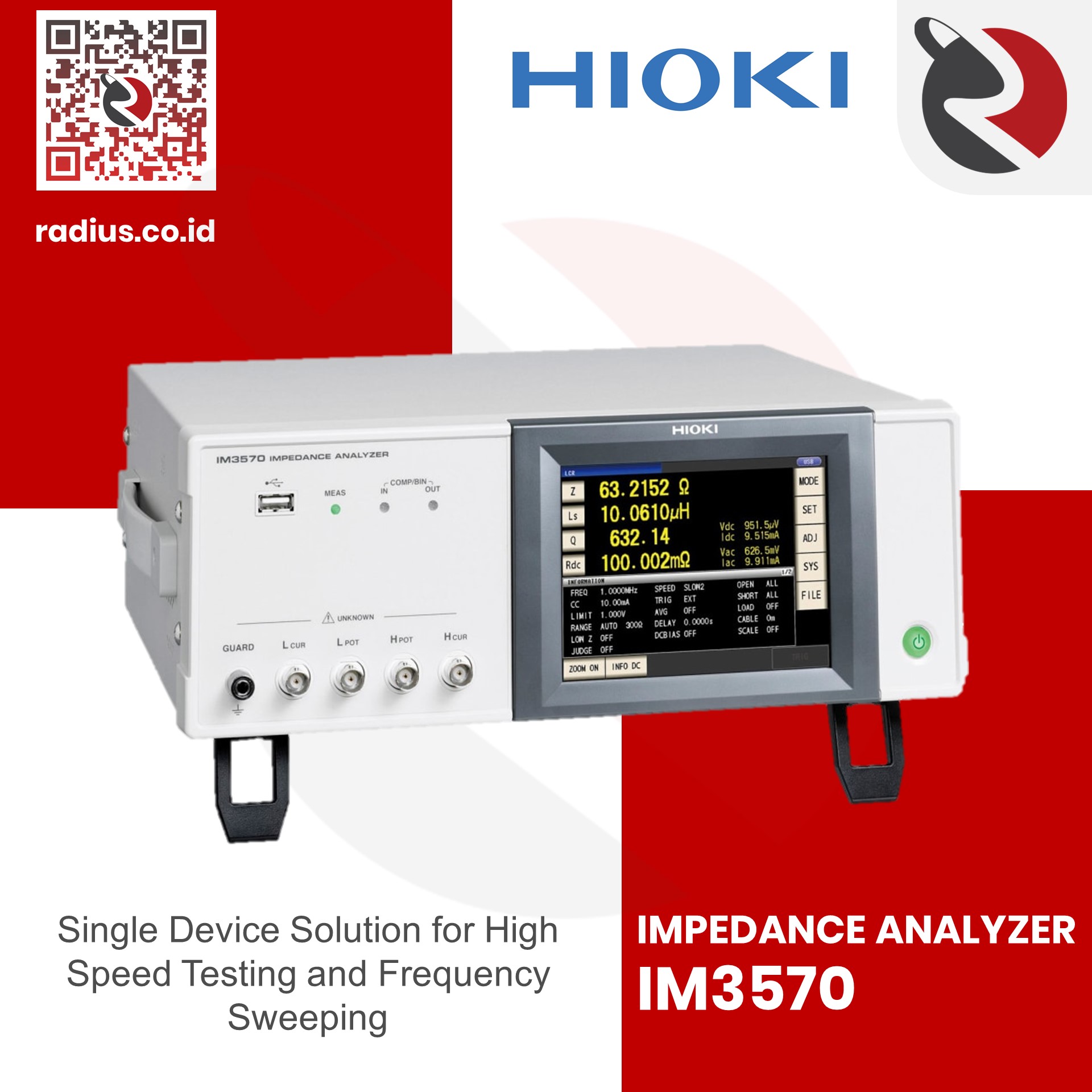

Hioki IM3570 Impendance Analyzer sangat ideal untuk digunakan dalam aplikasi yang memerlukan pengukuran ESR rendah pada urutan beberapa miliohm, misalnya pengujian kapasitor polimer fungsional, karena pengulangan impedansinya yang superior.
Spesififikasi Hioki IM3570
| Measurement modes | LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode |
|---|---|
| Measurement parameters | Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q |
| Measurement range | 100 mΩ to 100 MΩ, 12 ranges (All parameters are determined according to Z) |
| Display range | Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ±(0.000000 [unit] to 9.999999G [unit], Absolute value display for Z and Y only θ : ±(0.000° to 180.000°), D : ±(0.000000 to 9.999999) Q : ±(0.00 to 99999.99), Δ % : ±(0.0000% to 999.9999%) |
| Basic accuracy | Z ±0.08% rdg. θ: ±0.05° |
| Measurement frequency | 4 Hz to 5 MHz (5 digits setting resolution, minimum resolution 10 mHz) |
| Measurement signal level | Normal mode: V mode/CV mode: 5 mV to 5 Vrms (up to 1 MHz) 10 mV to 1 Vrms (1.0001 MHz to 5 MHz), 1 mVrms steps CC mode: 10 μA to 50 mArms (up to 1 MHz) 10 μA to 10 mArms (1.0001 MHz to 5 MHz), 10 μArms steps Low impedance high accuracy mode: V mode/CV mode: 5 mV to 1 Vrms (up to 100 kHz), 1 mVrms steps CC mode:10 μA to 100 mArms (100 mΩ and 1Ω ranges of up to 100 kHz), 10 μArms steps |
| Output impedance | Normal mode: 100 Ω, Low impedance high accuracy mode: 10 Ω |
| Display | 5.7-inch color TFT, display can be set to ON/OFF |
| Measurement time | 0.5 ms (100 kHz, FAST, display OFF, representative value) |
| Functions | DC bias measurement, Comparator, BIN measurement (classification), Panel loading/saving, Memory function |
| Interfaces | EXT I/O (handler), RS-232C, GP-IB, USB communication, USB memory, LAN |
| Power supply | 90 to 264 V AC, 50/60 Hz, 150 VA max. |
| Dimensions and mass | 330 mm (12.99 in) W × 119 mm (4.69 in) H × 307 mm (12.09 in) D, 5.8 kg (204.6 oz) |
| Accessories | Power cord × 1, Instruction manual × 1, PC communication instruction manual (CD-R) × 1 |
