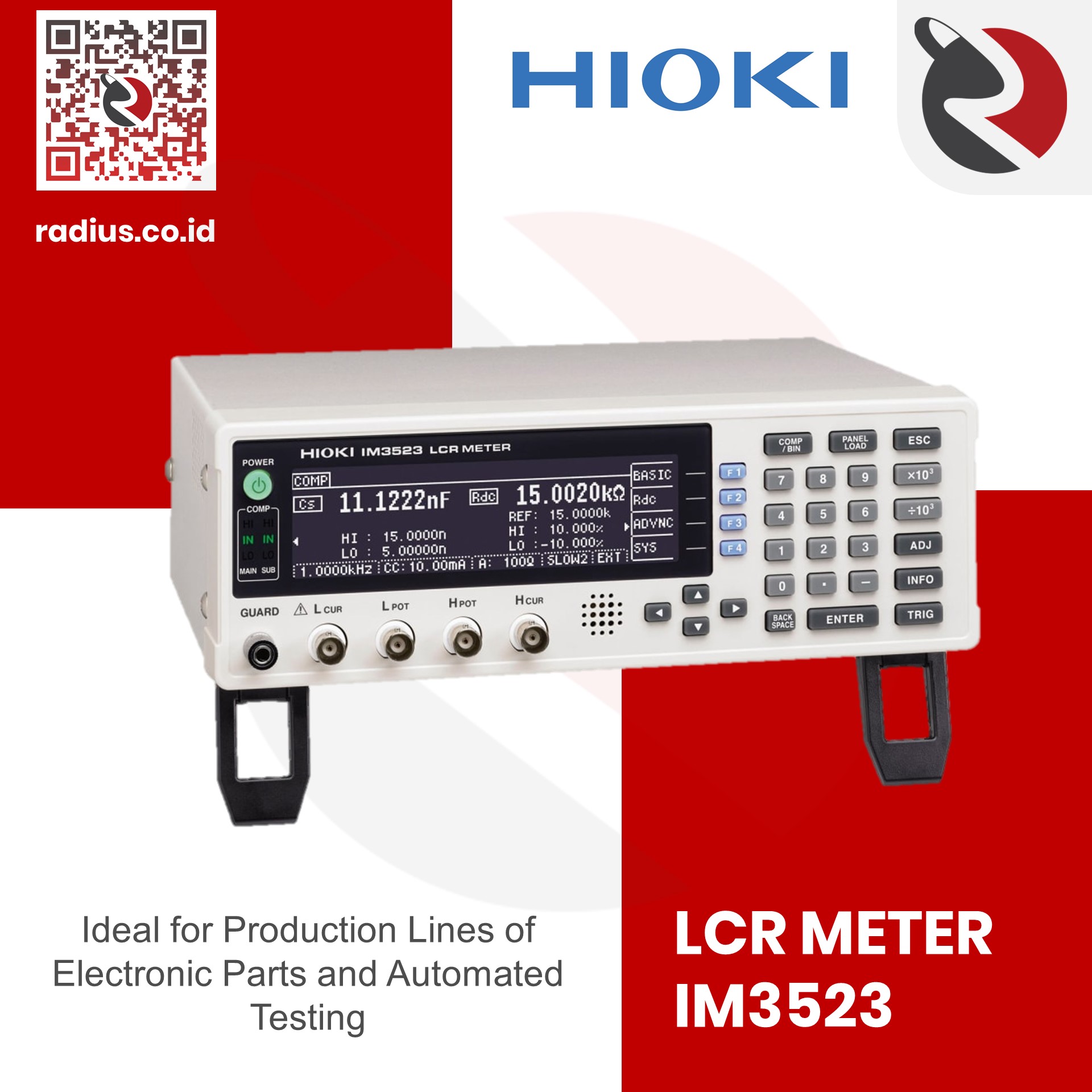

Hioki IM3523 LCR Meter dirancang untuk pengukuran dasar pada lini produksi sehingga dapat ditawarkan dengan harga rendah, dan memberikan keandalan pengukuran yang lebih baik berkat fungsi pemeriksaan kontaknya.
Spesifikasi Hioki IM3523 LCR Meter
| Measurement modes | LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions) |
|---|---|
| Measurement parameters | Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ), σ, ε |
| Measurement range | 100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.) |
| Displayable range | Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only θ: ± (0.000° to 180.000°), D: ± (0.00000 to 9.99999) Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%) |
| Basic accuracy | Z : ±0.05% rdg. θ: ±0.03° |
| Measurement frequency | 40 Hz to 200 kHz (5 digits setting resolution) |
| Measurement signal level | V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps CC mode: 10 μA to 50 mArms, 10 μArms steps |
| Output impedance | 100 Ω |
| Display | Monochrome LCD |
| Measurement time | 2 ms (1 kHz, FAST, representative value) |
| Functions | Comparator, BIN measurement (classify function), Panel loading/saving, Memory function |
| Interfaces | EXT I/O (handler), USB communication (high-speed) Optional: Choose 1 from RS-232C, GP-IB, or LAN |
| Power supply | 100 to 240 V AC, 50/60 Hz, 50 VA max |
| Dimensions and mass | 260 mm (10.24 in) W × 88 mm (3.46 in) H × 203 mm (7.99 in) D, 2.4 kg (84.7 oz) |
| Accessories | Power cord × 1 , Instruction manual × 1, CD-R (Includes PC commands and sample software) × 1 |
