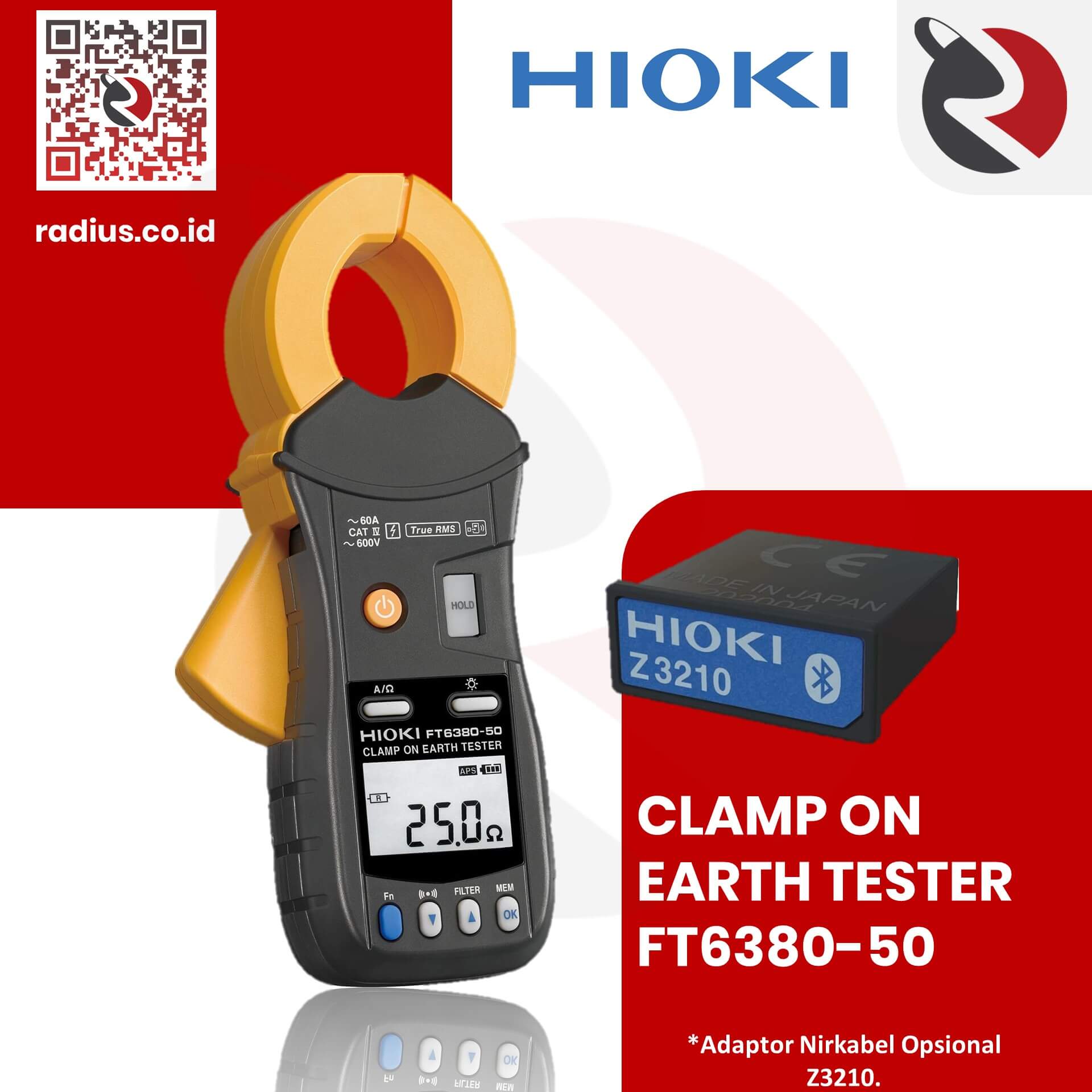

Hioki FT6380-50 Clamp On Earth Tester

Fitur Utama Hioki FT6380-50
• Kompatibel dengan Aplikasi gratis Hioki GENNECT Cross (Adaptor Nirkabel Opsional Z3210 diperlukan)
• Mentransfer data pengukuran secara nirkabel ke formulir Excel untuk input (Akan didukung oleh peningkatan tahun 2021)
• Pengukuran tahanan gronding untuk sistem multi ground
• Ukur arus bocor dengan kepastian mutlak dengan resolusi 0,01 mA yang sangat sensitif (pada kisaran 20,00 mA)
• Ukur arus beban hingga kisaran 60,0 A
• Jepit di titik tersempit

Categories: Earth Tester, Hioki (Electrical Measurement)

Description
Reviews (0)

Hioki FT6380-50 mengukur resistensi grounding hanya dengan menjepit ke beberapa kabel grounding. Tidak diperlukan batang (rod) arde tambahan, dan tidak perlu melepaskan kabel arde dari batang arde. Sensor yang ringkas dan berprofil rendah dapat digunakan untuk menjepit kabel arde dengan mudah, dan juga menyediakan fungsionalitas pengukuran arus AC dan dapat mengukur arus mulai dari arus bocor pada orde beberapa mA hingga arus beban hingga 60 A.

CAT IV 600 V

Spesifikasi Hioki FT6380-50 Clamp On Earth Tester

Measurement principle	Instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated Note: For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value.
Earthing resistance range	\0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges, Zero suppression: Less than 0.02 Ω, Accuracy: ±1.5 % rdg. ±0.02 Ω
AC Current range	20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA, Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less)
Maximum input current (Current measurement)	100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50 Hz/60 Hz, requires derating at frequency)
Maximum rated terminal-to-ground voltage	600 VAC measurement category IV (anticipated transient overvoltage 8000 V)
Memory function	2000 data
Alarm function	For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold.
Other functions	Data hold, Backlight, Filter, Auto power save, Wireless communication (without Z3210 installed))
Display	LCD, Max. 2,000 count Display refresh rate: Approx. 2 times/sec.
Dust-proof and waterproof	IP40 (EN60529) With Jaws Closed
Power supply	LR6 alkaline battery × 2
Continuous operating time	Approx. 40 hours (25 Ω measurement, backlight off, without Z3210 installed) Approx. 35 hours (25 Ω measurement, backlight off, with Z3210 installed and using wireless communications)
Maximum measurable conductor diameter	φ 32 mm (1.26 in)
Dimensions and mass	73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D, 620 g (21.9 oz)
Accessories	Carrying case, Resistance check loop (1 Ω±2%, 25Ω±1%), Strap, LR6 alkaline battery × 2, Instruction manual

	Multiple grounding can be easily checked with the clamps.
	Can measure Multi-Grounded systems. Clamp on the earth cable. The instrument has two cores for voltage injection and current measurement. 1. The voltage transducer injects a defined voltage into the multi-grounded system. 2. From the defined voltage and measured current, the total circuit loop resistance is calculated in the following equation. Rx + 1/ [ (1/R1) + (1/R2) + (1/R3) + (1/R4) + … ] = V/I In a typical multi-grounded system, the parallel resistance value is small enough to be ignored and the equation as referred on the left can be simulated as follows. Rx = V/I

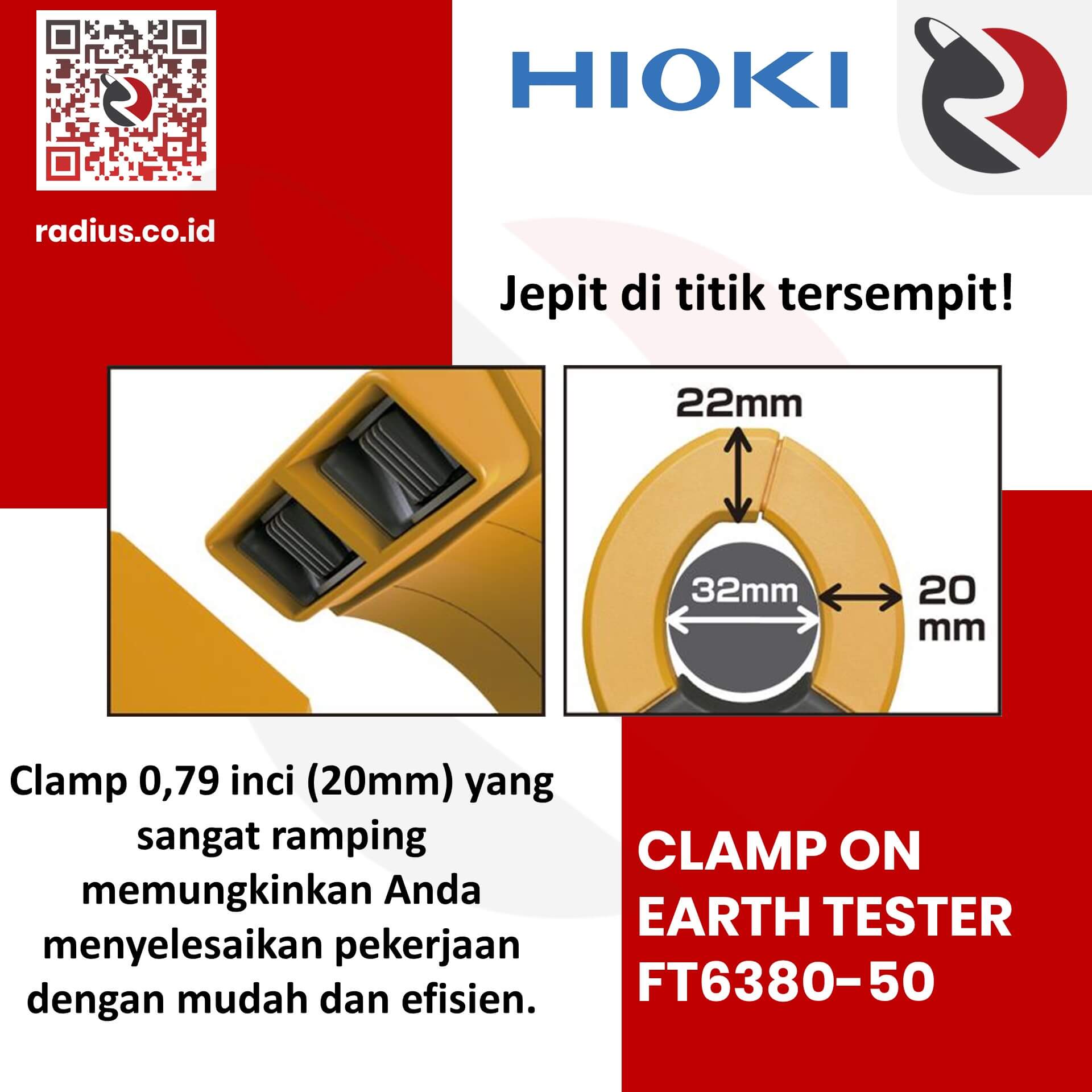

	Clamp at the narrowest point! The dramatically slim 0.79 inch (20mm) jaws let you finish your job easily and efficiently.

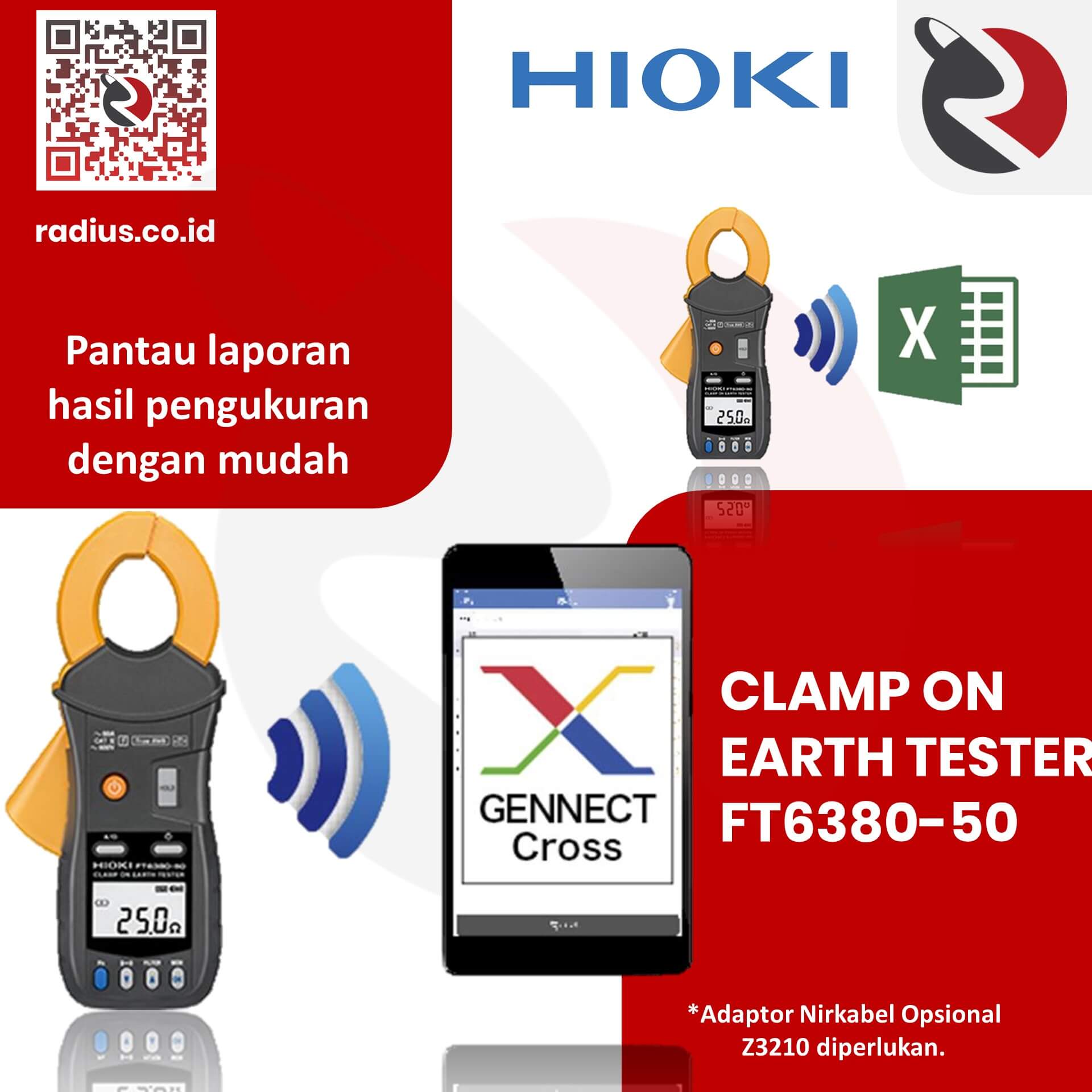

Click here to see fullscreen video	Transfer data via Bluetooth® wireless communication The new FT6380-50 is compatible with the Z3210 wireless adapter (option). When the Z3210 is installed, Bluetooth® wireless communication is enabled. The measurement data can be transferred to the dedicated free application GENNECT Cross or your Excel® files and reports. For more information on the Z3210, click here.
	Transport to the Excel® file (It will be supported by the 2021 upgrade.) Open an Excel® file and select a cell. The measured value being held on the instrument’s display will be transferred to the PC and entered into the selected cell. *Optional Wireless Adapter Z3210 is necessary.
	Transport to GENNECT Cross GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports. The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos. In the previous model FT6381, only Android was supported in a separate app, but the new model supports GENNECT Cross, allowing users to create reports together with measurements from other instruments. *Optional Wireless Adapter Z3210 is necessary. Click here for GENNECT Cross special site.
	Alarm Function Set the alarm to audibly and visually notify yourself that the resistance or current value exceeds the threshold.
	High Accuracy and Repeatability Well-designed magnetic shields eliminate the leakage flux between the two cores that often affect measurement accuracy.
	LCD with beautiful back light With the bright back light, you can easily read the measurement value even in dark locations.
	Large storage capacity (up to 2,000 data) You can store up to 2,000 measurement values in the field and recall them in your office later.
