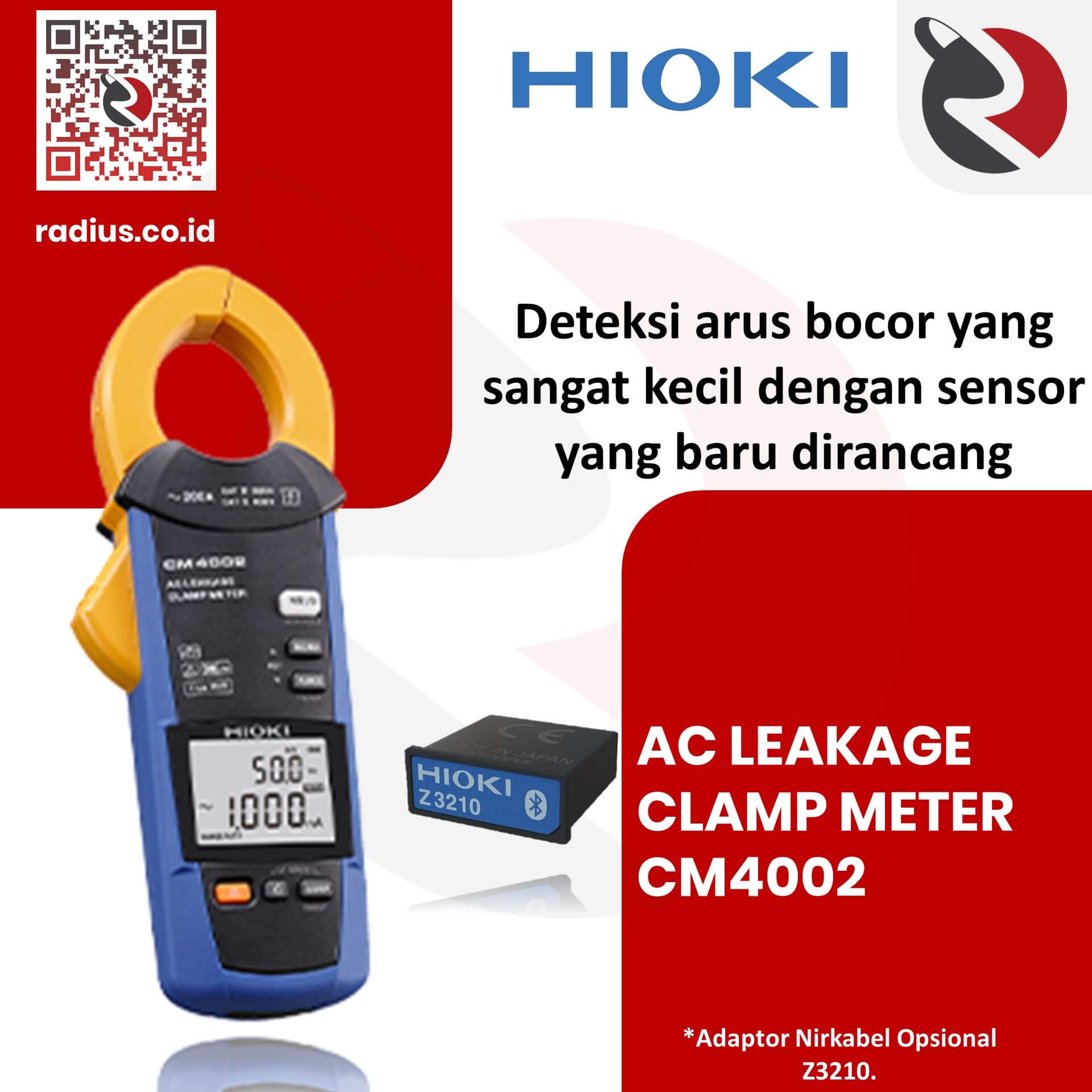

Hioki CM4002 AC Leakage Clamp Meter

Fitur Utama Hioki CM4002
• Dukungan nirkabel. Mentransfer pengukuran ke smartphone atau tablet Anda. (Adaptor Nirkabel Opsional Z3210 diperlukan)
• Deteksi arus bocor yang sangat kecil dengan sensor yang baru dirancang. (Diameter rahang inti hingga 40 mm)
• Rentang pengukuran yang luas mulai dari arus bocor hingga arus beban
• Selesaikan masalah GFCI dan RCD dengan cepat
• Percepat penilaian lulus/gagal dengan fungsi pembanding bawaan

CAT IV 300 V
CAT III 600 V

Categories: Clamp Meter, Hioki (Electrical Measurement)

Description
Reviews (0)

Spesifikasi Hioki CM4002 AC Leakage Clamp Meter

AC Current range	6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS Basic accuracy 45 Hz – 400 Hz: ±1.0% rdg ±5 dgt (6.000 mA to 6.000 A), ±1.5% rdg ±5 dgt (60.00 A, 200.0 A) Basic accuracy 15 Hz – 45 Hz, 400 Hz – 2 kHz: ±2.0% rdg ±5 dgt Defined accuracy range: 0.060 mA to 200.0 A
AC Voltage range	N/A
Frequency range	15.0 Hz to 2000 Hz
Crest factor	3 (other than 200.0　A range), 1.5 (200.0　A range)
Filter function	Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
Output function	N/A
Other functions	Max/ Min/ AVG/ PEAK MAX/ PEAK MIN value display, Display value hold and auto hold; Backlight, Auto power save, Buzzer sound, Event count display, Comparator, Simple event recording, Rush current measurement
Display	Display refresh rate: 5 times/s
Power supply	AA-size alkaline battery (LR6) × 2; Continuous operating time: 48 hr. (without Z3210 installed), 30 hr. (with Z3210 installed and using wireless communications)
Core jaw diameter	φ 40 mm (1.57 in.)
Dimensions and mass	64 mm (2.52 in) W × 233 mm (9.17 in) H × 37 mm (1.46 in) D, 400 g (14.1 oz.)
Accessories	6Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2

	Connect the Z3210 to add wireless communications Easy visualization of intermittent trip events Connect the Wireless Adapter Z3210 (sold separately) to add wireless communications. You can transfer the readings to your phone or tablet and check the location and time of leakage easily and efficiently.

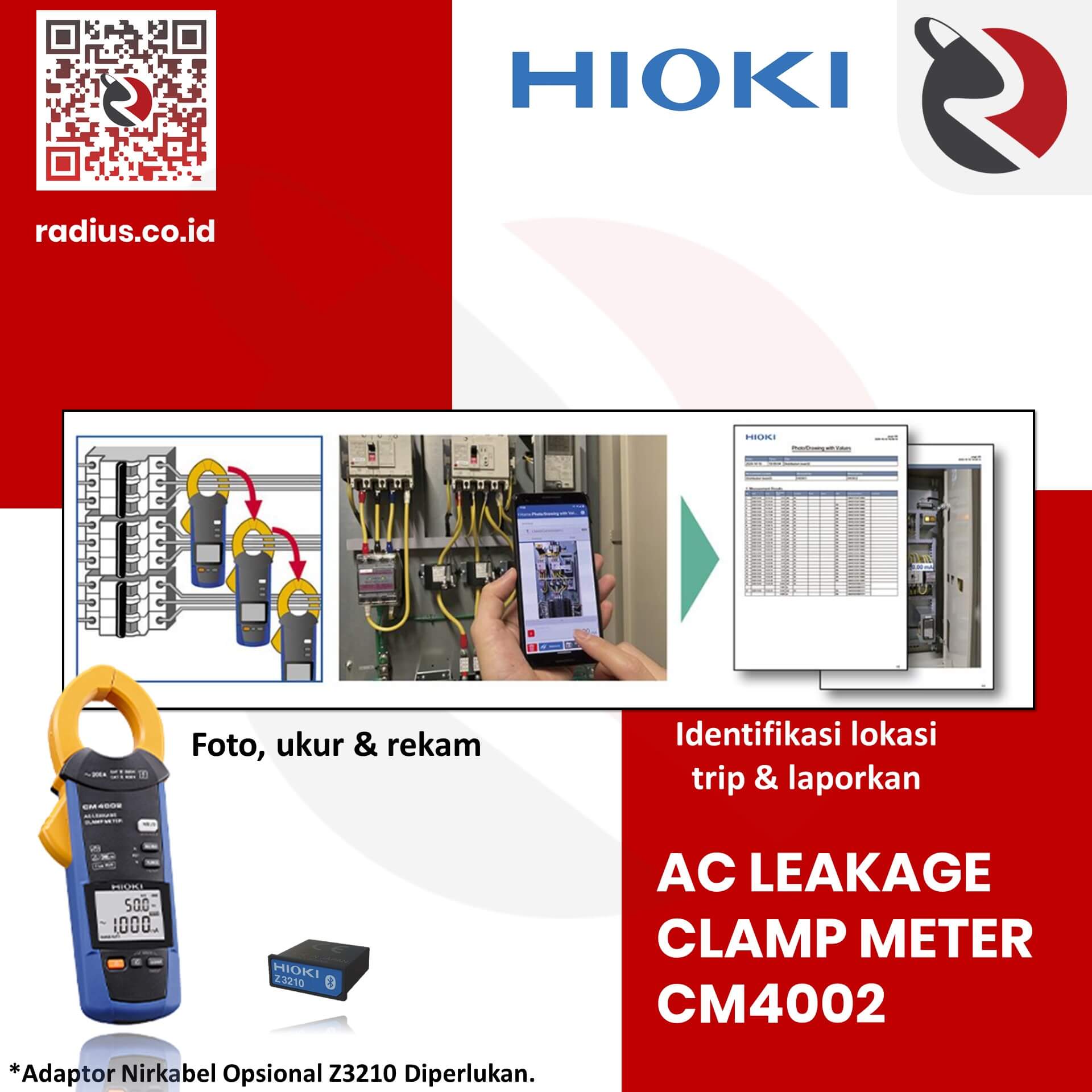

	Regular inspections of GFCIs and RCDs [Photo drawing function] Record measurement locations and measured values together. Identify trip locations quickly and reliably!

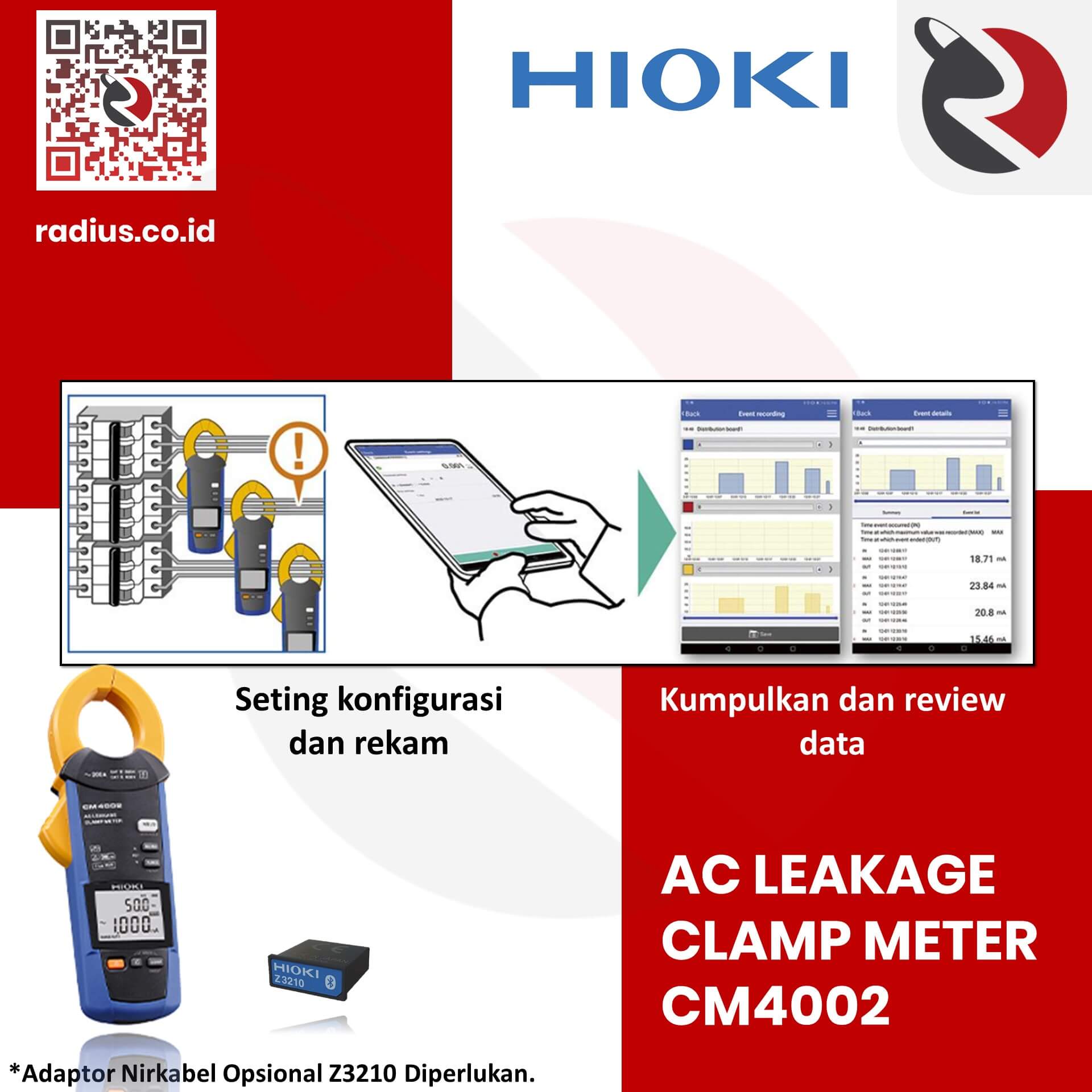

	Identifying intermittent trip events [Event recording function] The meter records event information (times and current values) in its internal memory. Collect data using a tablet and check for trips!
	Detect minuscule leakage currents with a newly designed sensor IEC/EN 61557-13 compliant The core and shielding are constructed from high-permeability magnetic materials. The CT sensor features a uniform coil. The CM4002/CM4003 complies with the performance standard set forth in IEC/EN 61557-13, an international standard on leak clamp meters.
	High-reliability leakage current measurement 1. Uniform measurement sensitivity inside jaws: When affixed around a wire, sensitivity is uniform regardless of the position of the conductor inside the jaws. 2. Resistance to the effects of external magnetic fields: Shielding made of high-permeability magnetic material blocks magnetic fields from the surrounding environment. 3. Elimination of the effects of highfrequency currents: A low-pass filter eliminates high-frequency capacitive leakage currents from inverters and other equipment.
	Measurable conductor diameter up to φ40 mm The jaws have a maximum diameter of φ40 mm and can be used to pinch thick cables or multiple cables at once.
