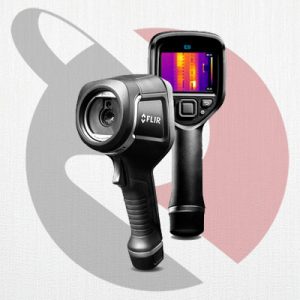

SPECIFICATIONS
OVERVIEW
- Accuracy
- ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
- Detector Type
- Uncooled microbolometer
- Field of view (FOV)
- 45° × 34°
- IR Resolution
- 120 × 90 pixels
- List of Contents
- •Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation
- Multi Spectral Dynamic Imaging (MSX)
- IR image enhanced with visible camera detail
- Object Temperature Range
- –20°C to 250°C (–4°F to 482°F)
- Packaging Size
- 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
- Thermal Sensitivity/NETD
- <0.10°C (0.27°F) / <100 mK
COMPLIANCE & CERTIFICATIONS
- Certifications
- UL, CSA, CE, PSE and CCC
CONNECTIONS & COMMUNICATIONS
- AC Operation
- AC adapter, 90–260 VAC input, 5 VDC output to camera
- Interface
- USB Micro: Data transfer to and from PC and Mac device
- WiFi
- •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
ENVIRONMENTAL
- EMC
- •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
- Humidity (Operating and Storage)
- IEC 60068-2-30/24 h 95% relative humidity
- Operating Temperature Range
- –15°C to 50°C (5°F to 122°F)
- Radio Spectrum
- •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- –40°C to 70°C (–40°F to 158°F)
- Vibration
- 2 g (IEC 60068-2-6)
- Emissivity table/correction
- Emissivity table of predefined materials/variable from 0.1 to 1.0
- Encapsulation/Drop
- IP 54 (IEC 60529)/2m (6.6 ft.)
IMAGING & OPTICAL
- Color
- Black and gray
- Color palettes
- Black & white, iron, and rainbow
- f-number
- 1.5
- Focus
- Focus free
- Image Adjustment
- Automatic adjust/lock image
- Image Frequency
- 9 Hz
- Image Modes
- Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
- Minimum Focus Distance
- 0.5 m (1.6 ft)
- Picture-in-Picture
- IR area on visual image
- Spatial resolution (IFOV)
- 6.9 mrad
- Spectral Range
- 7.5–13 µm
- Digital Camera Resolution/FOV
- 640 × 480/55° × 43°
MEASUREMENT & ANALYSIS
- Isotherm
- Above/below/interval
- Reflected apparent temperature correction
- Automatic, based on input of reflected temperature
- Set-up Commands
- Local adaptation of units, language, date and time formats
- Spot Meter
- Center spot; box with min./max.
- Spotmeter and Area
- Center spot; box with min./max.
METER DATA
- Camera size (L x W x H)
- 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
- Camera weight incl battery
- 0.575 kg (1.27 lb.)
- Display
- 3.0 in. 320 × 240 color LCD
POWER
- Charging system
- Battery is charged inside the camera or in specific charger.
- Charging Time
- 2.5 hours to 90% capacity in camera. 2 hours in charger.
- Power Management
- Automatic shut-down
- Battery type & operating time
- Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
STORAGE MEDIA
- File Formats
- Standard JPEG, 14-bit measurement data included
