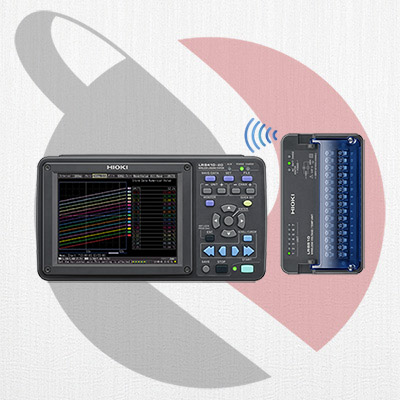

Memori Hioki HiLoggers adalah pencatat data berkecepatan tinggi untuk merekam beberapa saluran sinyal tegangan, suhu, ketahanan atau kelembaban, beberapa model menyediakan isolasi lengkap antara saluran dan ketahanan kebisingan yang kuat. LR8410-20 adalah sistem logging nirkabel inovatif yang mampu menangkap hingga 105 saluran data secara nirkabel menggunakan teknologi nirkabel Bluetooth®.
| No. of measurement channels | Max. 105 ch (use 7 units of LR8510 or LR8511) One or more LR8510 or LR8511 measurement modules are required. Main unit can control up to 7 modules with Bluetooth® wireless technology, mix and match modules as needed |
|---|---|
| Pulse, digital input | [Pulse totalization] [Rotation count] Not available |
| Recording intervals | 100 ms(*2), 200 ms to 1 hour, 16 selections (All input channels are scanned within each recording interval.) (*2) Setting not available when the thermocouple burnout detection setting is on |
| Data storage | Internal memory: 8 M-words, Data storage media: SD memory card or USB memory stick (Only data recorded to a genuine HIOKI SD memory card is guaranteed) |
| Interface | LAN: 100BASE-TX, Functions: Data acquisition using bundled software or PC commands, FTP server, FTP client, HTTP server function, or E-mail system USB: USB 2.0 series mini-B receptacle ×1, Functions: Data acquisition using bundled software or PC commands, Transfer data from the SD memory card to a PC via USB drive mode |
| Display device | 5.7 inch TFT color liquid crystal display (640 × 480 pixel) |
| Functions | Save waveform data in real time to the SD memory card or USB memory stick, Numerical value calculations, Waveform calculations, 4ch alarm output (not isolated, common ground), and others |
| Power supply | [AC adapter] Using the AC adapter Z1008 (100 to 240 V AC, 50/60 Hz), 45 VA Max. (including AC adapter), 15 VA Max. (exclusive of AC adapter) [Internal battery] Using the Battery pack Z1007 (optional accessory), 3 hours of continuous use (at 23 ˚C reference data), 7 VA Max. [External power] 10 to 28 V DC, 15 VA Max. (Please contact your HIOKI distributor for connection cord) |
| Dimensions and mass | 230 mm (9.06 in) W × 125 mm (4.92 in) H × 36 mm (1.42 in) D, 700 g (24.7 oz) (excluding Battery pack) |
| Accessories | Instruction manual × 1, Measurement guide × 1, SD memory card (2GB) Z4001 × 1, CD-R (data collection software “Logger Utility”) × 1, USB cable × 1, AC Adapter Z1008 × 1 |
LR8410-20 saja tidak mampu melakukan pengukuran. Diperlukan satu atau lebih modul input untuk diukur. Unit utama dan modul input tidak dibundel dengan Paket Baterai Z1007. Termokopel tidak disediakan oleh HIOKI, dan harus dibeli dari vendor terpisah.
Catatan: Gunakan hanya kartu Memori SD HIOKI, yang diproduksi dengan standar industri yang ketat, untuk penyimpanan data penting jangka panjang. Pengoperasian kartu SD non-HIOKI atau stik memori USB yang benar tidak dijamin.
